cadence 16.5中bga扇出错误

录入:edatop.com     点击:

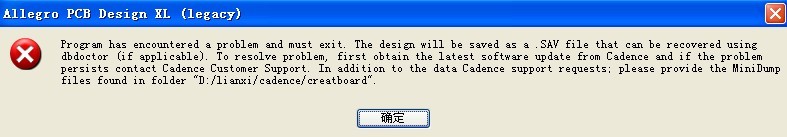

各位大神大家好,为什么我在pcb中执行 fanout by pick的时候会出现这个错误?然后点确定就自动退出软件了。谢谢


自己顶一下

在router check的时候出现六个警告
(Warning):   There are more than 500 pads as shapes in the design.
(Warning):   No crosstalk table file was found.
             Consider running command 'signal xtalktable'
(Warning):   One or more Rat Ts were found with no FIXED_T_TOLERANCE property.
(Warning):   Package keepin not defined.
(Warning):   Some of the clearance rules defined in Cset OSC_SPACE will be different in SPECCTRA.
          Some of the clearance rules defined in Cset CLK_SPACE will be different in SPECCTRA.
          Some of the clearance rules defined in Cset DEFAULT will be different in SPECCTRA.
(Warning):
For detailed information, set the environment variable "RTR_DETAILED_MESSAGES".
Total of 6 Warnings and 0 errors.

没人理我

用creat fanout.

用create fanout没有这个错误  只是会出现DRC错误
为什么用fanout by pick就不行啊?

这个不好说,可能是软件BUG,也可能是数据库错误

我也出现了这个错误,小编解决了吗?
