制作光绘文件时有警告
录入:edatop.com 点击:
下面的就是警告内容,这个“ CIRCLE 0.01200 DARK” ,看不懂。有懂的,说一下。
================================================================
PROCESSING FILM < TOP >
TO FILE < F:/YC002A/25T-SERVER/25T-PCB/TOP.art > ...
================================================================
FILM PARAMETERS :
---------------------------------------------------------
Undefined line width 8.0
Mirror code NONE
Rotate angle NONE
Offset x: 0.0
Offset y: 0.0
Plot negative NO
Suppress unconnected internal pads NO
APERTURES USED:
---------------------------------------------------------
TYPE SIZE/NAME ROT MIRROR MODE
---------------------------------------------------------
CIRCLE 0.01200 DARK
CIRCLE 0.02000 DARK
CIRCLE 0.05510 DARK
CIRCLE 0.21650 DARK
SQUARE 0.05510 0.000 NO DARK
RECTANGLE 0.07090 x 0.05510 0.000 NO DARK
RECTANGLE 0.07090 x 0.05510 90.000 NO DARK
TOP created with warnings
================================================================
PROCESSING FILM < TOP >
TO FILE < F:/YC002A/25T-SERVER/25T-PCB/TOP.art > ...
================================================================
FILM PARAMETERS :
---------------------------------------------------------
Undefined line width 8.0
Mirror code NONE
Rotate angle NONE
Offset x: 0.0
Offset y: 0.0
Plot negative NO
Suppress unconnected internal pads NO
APERTURES USED:
---------------------------------------------------------
TYPE SIZE/NAME ROT MIRROR MODE
---------------------------------------------------------
CIRCLE 0.01200 DARK
CIRCLE 0.02000 DARK
CIRCLE 0.05510 DARK
CIRCLE 0.21650 DARK
SQUARE 0.05510 0.000 NO DARK
RECTANGLE 0.07090 x 0.05510 0.000 NO DARK
RECTANGLE 0.07090 x 0.05510 90.000 NO DARK
TOP created with warnings
警告可以忽略

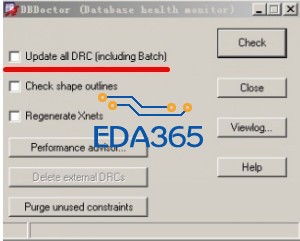

知道原因了,是DBDector检查项中,没有勾选Update all DRC.
