Allegro做的板子文件，导入到cam350看不到没有定位孔了？
录入：edatop.com 点击：

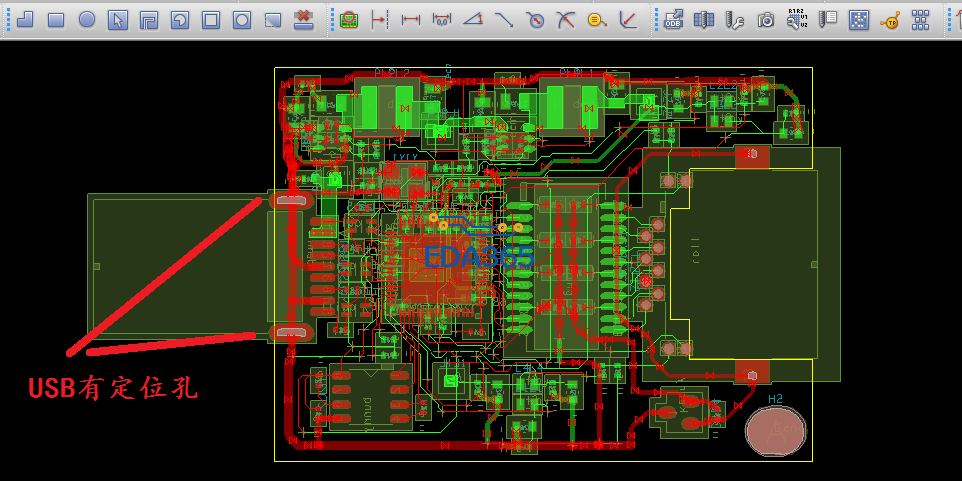

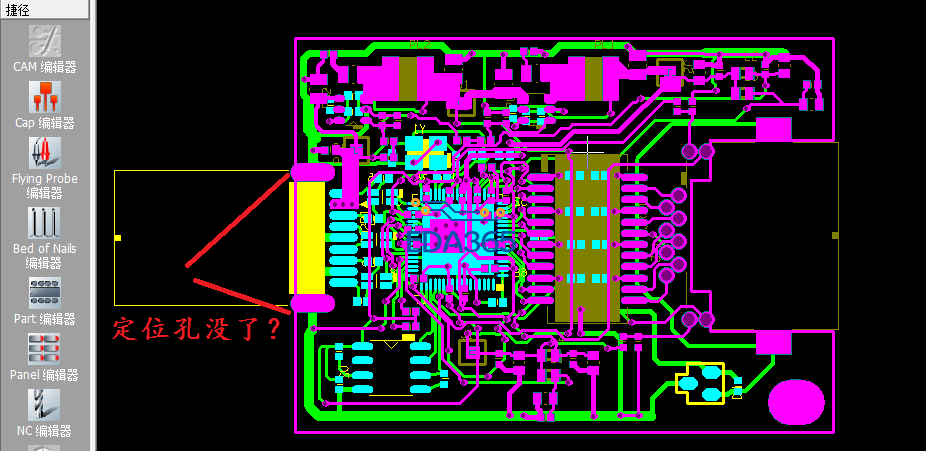

做了个板子，上面有一个USB公头，artwork后导入到cam350 USB公头的定位孔没了，这定位孔是USB 公头的 symbol带的， 要怎么解决啊? 感谢
我只能说生成光绘有问题，没有把不规则焊盘的转孔文件生成
感谢您的回复，要把这孔调出来，要添加什么层呢?
Manufacture---Nc---nc route
感谢哦 但是我好像点过这个了哦 ，还是要感谢您， 还有可能是别的什么问题吗?
nc route 导出来，你导进CAM350还是会啥也看不到。
楼上正解，route后需要把route文件打开，删除%前的内容，cam350才能看到
感谢您的回复，我ncroute导出来的内容如下 帮忙看看有什么问题吗，在Cam350里面看到椭圆孔， 圆孔能看到的哦
(---------------------------------------------------------------------)
( )
( NC ROUTE Log )
( )
( Drawing : #Taaaaaa06212.tmp )
( Software Version : 16.3p003 )
( Date/Time : Tue Mar 26 16:55:22 2013 )
( )
(---------------------------------------------------------------------)
Processing NC Parameters file ...
NC PARAMETERS
-------------
FORMAT 3.5
MACHINE-OFFSET x:0.000000 y:0.000000
FEEDRATE 1
COORDINATES ABSOLUTE
OUTPUT-UNITS ENGLISH
TOOL-ORDER INCREASING
REPEAT-CODES YES
SUPPRESS-LEAD-ZEROES NO
SUPPRESS-TRAIL-ZEROES NO
SUPPRESS-EQUAL NO
TOOL-SELECT NO
HEADER none
LEADER 12
CODE ASCII
SEPARATE NO
OPTIMIZE_DRILLING NO
ENHANCED_EXCELLON NO
SCALE 1.000000
-------------------------------------------------------------
Processing route path data ...
WARNING: No route path data was found for processing.
-------------------------------------------------------------
Processing slot hole data ...
WARNING: Can't find NC Route bit file (ncroutebits.txt)！
Using T01 to route ALL route cuts.
WARNING: No toolcode of a size the same as or smaller than 157 found for an OVAL slot！
Defaulting to T01 as toolname.
WARNING: No toolcode of a size the same as or smaller than 24 found for an OVAL slot！
Defaulting to T01 as toolname.
WARNING: No toolcode of a size the same as or smaller than 24 found for an OVAL slot！
Defaulting to T01 as toolname.
WARNING: No toolcode of a size the same as or smaller than 28 found for an OVAL slot！
Defaulting to T01 as toolname.
WARNING: No toolcode of a size the same as or smaller than 28 found for an OVAL slot！
Defaulting to T01 as toolname.
OVAL slots routed: 5
RECTANGLE slots routed: 0
-------------------------------------------------------------
NC Route file USBtoLAN0326-4.rou created WITH WARNINGS ... Program completed.
你没有定义铣刀文件ncroutebits.txt
这个要好好学习一下，有没有详细的教程啊?我一直没这样弄过啊?什么情况需要操作这些?
我也遇到这个问题了，有没有资料提供下
