如何从artwork的日志文件中查找错误和报警？
录入：edatop.com 点击：
各位大神，我听说生成底片时要没有报警和错误，我生成的底片日志中摘要里说有警告，可我没有找到，请各位大神指点下！生成底片的log文件内容如下：(---------------------------------------------------------------------)( )( ARTWORK LOG )( )( Drawing : demo_split2.brd )( Software Version : 16.6P004 )( Date/Time : Mon Oct 06 11:30:31 2014 )( )(---------------------------------------------------------------------) ****************************************** WARNING: DRC OUT OF DATE on this layout. ****************************************** ---- Photoplot outline rectangle not found ... using drawing extentsResults from parameter file ... DEVICE-TYPE GERBER_RS274X OUTPUT-UNITS INCHES FILM-SIZE 2400000 1600000 FORMAT 5.5 ABORT-ON-ERROR NO SCALE 1 SUPPRESS-LEAD-ZEROES YES SUPPRESS-TRAIL-ZEROES NO SUPPRESS-EQUAL YES UNDEF-APT-CONT NO================================================================ PROCESSING FILM < GND > TO FILE < E:/work/Cadence/allegro/GND.art > ...================================================================ FILM PARAMETERS : --------------------------------------------------------- Undefined line width 0.00 Mirror code NONE Rotate angle NONE Offset x: 0.00 Offset y: 0.00 Plot negative NO Suppress unconnected internal pads NO Draw holes only NO APERTURES USED: --------------------------------------------------------- TYPE SIZE/NAME ROT MIRROR MODE --------------------------------------------------------- CIRCLE 0.00600 DARK CIRCLE 0.02400 DARK CIRCLE 0.05200 DARK CIRCLE 0.06200 DARK CIRCLE 0.10000 DARK CIRCLE 0.11000 DARK SQUARE 0.05200 0.000 NO DARK SQUARE 0.06200 0.000 NO DARK GND created with warnings------------------------------------------------------ SUMMARY: GND created with warnings ARTWORK had warnings
1：从上面可以看到你的DRC好像还没有检查完吧，还有DRC
2：Photoplot outline rectangle not found，这个要在Manufacturing/Photoplot_Outline 这个层里画个方框，

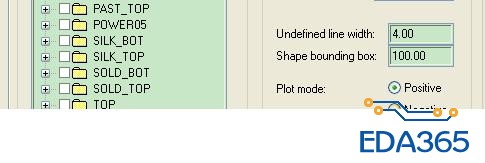

3： Undefined line width 将这一个改为6 MIL，要不然GEEBER里看不到2D线，设置如下图
