orcad分裂元件无法编号
录入：edatop.com 点击：
orcad 我已经把分裂元件的part用变量分组了，怎么还是不能Annotate?
ERROR(ORCAP-1376): Cannot perform annotation of heterogeneous part 'N?A(Value NE5532) at location (10.30, 1.70) on page OPA_BUF', part has not been uniquely grouped (using a common User Property with differing Values) or the device designation has not been chosen
INFO(ORCAP-1379): Done updating part references
ERROR(ORCAP-1376): Cannot perform annotation of heterogeneous part 'N?A(Value NE5532) at location (10.30, 1.70) on page OPA_BUF', part has not been uniquely grouped (using a common User Property with differing Values) or the device designation has not been chosen
INFO(ORCAP-1379): Done updating part references
不过要是 一个板子里面有好几个相同的分割元件，，，怎么办。他哪里知道把那几个分配在一起

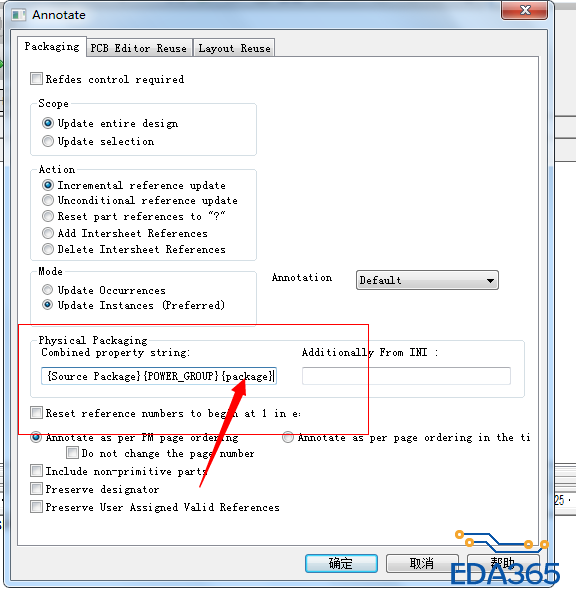

添加个标示 就行了
谢谢
好的！我就碰到这个啊1！谢谢
向我們公司的 symbol 並沒有這個欄位(package)
該怎麼辦呢?
