导入网表warning,求指点
录入:edatop.com 点击:
win7系统均在管理员身份运行软件
ORCAD16.5 导出网表成功,见下图

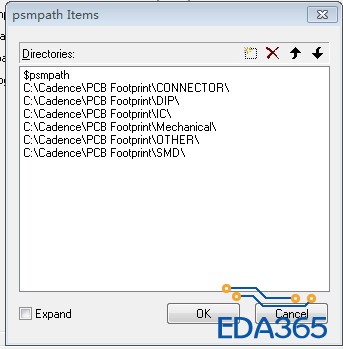

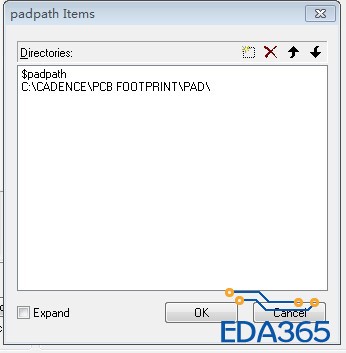

同时在allegro内已经设置了PSM和PAD路径,如下图
路径下的库文件是真实存在的,如下(图片太多,所以选取代表性的截图出来看)
但是在向allegro中导入网表时候报如下错误:
#1 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'USB-A_4X1' for device 'CON_USB-A*1_USB-A_4X1_USB-A*1_U': WARNING(SPMHUT-127): Could not find padstack S060D040.
due to ERROR(SPMHDB-274): Unable to load flash symbol T080X060X030X045 (Check PSMPATH setting for this symbol).
#2 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'SMA_D0214AC' for device 'DIODE_TVS_2P_SMA_D0214AC_SMAJ33': WARNING(SPMHUT-127): Could not find padstack R057X065.
due to ERROR(SPMHDB-273): Unable to load shape symbol R061X069-SHAPE (Check PSMPATH setting for this symbol).
#3 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'CE1300X1300' for device 'ECAP_CE1300X1300_100UF_EMVE101A': WARNING(SPMHUT-127): Could not find padstack R080X280V.
due to ERROR(SPMHDB-273): Unable to load shape symbol R084X284V-SHAPE (Check PSMPATH setting for this symbol).
#4 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'SMD_FUSE_1812' for device 'FUSE_SMD_FUSE_1812_750MA_LP-MSM': WARNING(SPMHUT-127): Could not find padstack R070X125.
due to ERROR(SPMHDB-273): Unable to load shape symbol R074X129-SHAPE (Check PSMPATH setting for this symbol).
#5 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'SOT223_4' for device 'AMS1117_SOT223_4_AMS1117-3.3_AM': WARNING(SPMHUT-127): Could not find padstack R040X090V.
due to ERROR(SPMHDB-273): Unable to load shape symbol R044X094V-SHAPE (Check PSMPATH setting for this symbol).
求大神给个指点,该咋搞?
ORCAD16.5 导出网表成功,见下图
同时在allegro内已经设置了PSM和PAD路径,如下图
路径下的库文件是真实存在的,如下(图片太多,所以选取代表性的截图出来看)
但是在向allegro中导入网表时候报如下错误:
#1 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'USB-A_4X1' for device 'CON_USB-A*1_USB-A_4X1_USB-A*1_U': WARNING(SPMHUT-127): Could not find padstack S060D040.
due to ERROR(SPMHDB-274): Unable to load flash symbol T080X060X030X045 (Check PSMPATH setting for this symbol).
#2 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'SMA_D0214AC' for device 'DIODE_TVS_2P_SMA_D0214AC_SMAJ33': WARNING(SPMHUT-127): Could not find padstack R057X065.
due to ERROR(SPMHDB-273): Unable to load shape symbol R061X069-SHAPE (Check PSMPATH setting for this symbol).
#3 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'CE1300X1300' for device 'ECAP_CE1300X1300_100UF_EMVE101A': WARNING(SPMHUT-127): Could not find padstack R080X280V.
due to ERROR(SPMHDB-273): Unable to load shape symbol R084X284V-SHAPE (Check PSMPATH setting for this symbol).
#4 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'SMD_FUSE_1812' for device 'FUSE_SMD_FUSE_1812_750MA_LP-MSM': WARNING(SPMHUT-127): Could not find padstack R070X125.
due to ERROR(SPMHDB-273): Unable to load shape symbol R074X129-SHAPE (Check PSMPATH setting for this symbol).
#5 WARNING(SPMHNI-192): Device/Symbol check warning detected.
WARNING(SPMHNI-337): Unable to load symbol 'SOT223_4' for device 'AMS1117_SOT223_4_AMS1117-3.3_AM': WARNING(SPMHUT-127): Could not find padstack R040X090V.
due to ERROR(SPMHDB-273): Unable to load shape symbol R044X094V-SHAPE (Check PSMPATH setting for this symbol).
求大神给个指点,该咋搞?
S060D040、R057X065、R080X280V、R070X125、R040X090V缺少这几个焊盘文件,可以到对应零件封装里面导出来。
dzk小编根本不给表现机会啊~~~
谢谢DZK小编的回复。
但是是有焊盘文件的,而且也设置好了路径,如下,焊盘文件都在C盘的PAD文件夹里面。
哦,你的这几个焊盘有flash symbol和Shape symbol,例如S060D040有个flash symbol:T080X060X030X045,你看下psmpath路径下有没有,其他的类似。
谢谢DZK小编
PSM路径下的确是没有.FSM和.SSM文件,这个封装库是我拿到别个的直接来用的。
有没有解决办法,是不是要自己重新建封装。
盼答复。
如果是从其他板子导出的封装,那么对应的dra也会同时导出,要手工打开dra文件后保存一下,生成.FSM和.SSM;
如果没有,只能新建了。
你的库文件版本太低了吧,如果版本太低也会出现此问题。你可以试着用软件打开那几个焊盘文件,看是不是不能打开。
学习了
谢谢大家。
问题解决啦。我重新拿另外一张PCB导出了.fsm和.ssm文件,然后在PSMPATH里面添加了这两个文件的路径,就没有再报warning。
