导出PCB 封装时，出现这样的提示，怎么破？
录入：edatop.com 点击：
ERROR: For symbol Symbol Definition "Sip2_3_81_90", PAD80CIR50D padstack not found due to ERROR(SPMHDB-274): Unable to load flash symbol 100 (Check PSMPATH setting for this symbol).. Pin not added.
ERROR: For symbol Symbol Definition "Sip2_3_81_90", PAD80CIR50D padstack not found due to ERROR(SPMHDB-274): Unable to load flash symbol 100 (Check PSMPATH setting for this symbol).. Pin not added.
lqfp100 being dumped.
vssop8 being dumped.
1ss355-smd-0805 being dumped.
sot23_5 being dumped.
spl1212c being dumped.
screw2d2 being dumped.
sop8_pad being dumped.
con3_2_90 being dumped.
con4_2_90 being dumped.

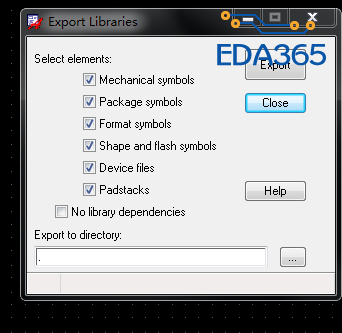

有好多个封装都导不出来的，只是导出部分的。什么原因引起的呢?请教大神们。我在导出选项中，是全选的~
ERROR: For symbol Symbol Definition "Sip2_3_81_90", PAD80CIR50D padstack not found due to ERROR(SPMHDB-274): Unable to load flash symbol 100 (Check PSMPATH setting for this symbol).. Pin not added.
lqfp100 being dumped.
vssop8 being dumped.
1ss355-smd-0805 being dumped.
sot23_5 being dumped.
spl1212c being dumped.
screw2d2 being dumped.
sop8_pad being dumped.
con3_2_90 being dumped.
con4_2_90 being dumped.
有好多个封装都导不出来的，只是导出部分的。什么原因引起的呢?请教大神们。我在导出选项中，是全选的~
把最后面那个 No library dependencies 勾上
对。是要把最后一个勾上的
我从来不勾，也没问题啊
谢谢！勾选最后一个后，就导出来了！
那个选项啥意思呢?
不依赖其他库
这是字面意思，通俗讲呢?
对。是要把最后一个勾上的
