creat netlist錯誤，請幫忙
录入：edatop.com 点击：
Spawning... "C:\Cadence\SPB_17.2\tools\bin\pstswp.exe" -pst -d "C:\USERS\Q8941\DESKTOP\WEBSTORAGE\8700 測試參考資料TX144\TX144.DSN" -n "C:\USERS\Q8941\DESKTOP\WEBSTORAGE\8700 測試參考資料TX144\allegro" -c "C:\Cadence\SPB_17.2\tools/capture/allegro.cfg" -v 3 -l 31 -s "" -j "PCB Footprint" -hpath "HPathForCollision"
#1 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C9: SCHEMATIC1, PAGE1 (175.26, 93.98).
#2 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance R3: SCHEMATIC1, PAGE1 (210.82, 45.72).
#3 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance MT2: SCHEMATIC1, PAGE1 (99.06, 27.94).
#4 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance R2: SCHEMATIC1, PAGE1 (114.30, 50.80).
#5 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance GND: SCHEMATIC1, PAGE1 (17.78, 20.32).
#6 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance BT1: SCHEMATIC1, PAGE1 (27.94, 55.88).
#7 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance TP1: SCHEMATIC1, PAGE1 (17.78, 30.48).
#8 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C4: SCHEMATIC1, PAGE1 (241.30, 66.04).
#9 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C5: SCHEMATIC1, PAGE1 (43.18, 66.04).
#10 ERROR(ORCAP-36002): Property "P
CB Footprint" missing from instance MT1: SCHEMATIC1, PAGE1 (99.06, 17.78).
#11 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance ANT1: SCHEMATIC1, PAGE1 (22.86, 101.60).
#12 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C17: SCHEMATIC1, PAGE1 (53.34, 129.54).
#13 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C6: SCHEMATIC1, PAGE1 (58.42, 66.04).
#14 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance BKGD: SCHEMATIC1, PAGE1 (48.26, 30.48).
#15 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance RST: SCHEMATIC1, PAGE1 (48.26, 20.32).
#16 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance VDD: SCHEMATIC1, PAGE1 (17.78, 10.16).
#17 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C15: SCHEMATIC1, PAGE1 (68.58, 119.38).
#18 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C7: SCHEMATIC1, PAGE1 (149.86, 93.98).
#19 ERROR(ORCAP-36002): Property "PCB Footprint" missing
from instance C3: SCHEMATIC1, PAGE1 (208.28, 66.04).
#20 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C10: SCHEMATIC1, PAGE1 (106.68, 101.60).
#21 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance L3: SCHEMATIC1, PAGE1 (40.64, 119.38).
#22 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance U2: SCHEMATIC1, PAGE1 (142.24, 22.86).
#23 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance L2: SCHEMATIC1, PAGE1 (93.98, 104.14).
#24 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C8: SCHEMATIC1, PAGE1 (154.94, 93.98).
#25 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance Y1: SCHEMATIC1, PAGE1 (223.52, 55.88).
#26 ERROR(ORCAP-36041): Duplicate Pin Name "+" found on Package BATTERY_6 , BT1 Pin Number 3: SCHEMATIC1, PAGE1 (27.94, 55.88). Please renumber one of these.
#27 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 20: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renum
ber one of these.
#28 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 21: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renumber one of these.
#29 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 22: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renumber one of these.
#30 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 23: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renumber one of these.
#31 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C9: SCHEMATIC1, PAGE1 (175.26, 93.98). All pins should be numbered.
#32 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C9: SCHEMATIC1, PAGE1 (175.26, 93.98). All pins should be numbered.
#33 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package R , R3: SCHEMATIC1, PAGE1 (210.82, 45.72). All pins should be numbered.
#34 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package R , R3: SCHEMATIC1, PAGE1 (210.
82, 45.72). All pins should be numbered.
#35 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , MT2: SCHEMATIC1, PAGE1 (99.06, 27.94). All pins should be numbered.
#36 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package R , R2: SCHEMATIC1, PAGE1 (114.30, 50.80). All pins should be numbered.
#37 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package R , R2: SCHEMATIC1, PAGE1 (114.30, 50.80). All pins should be numbered.
#38 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , GND: SCHEMATIC1, PAGE1 (17.78, 20.32). All pins should be numbered.
#39 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , TP1: SCHEMATIC1, PAGE1 (17.78, 30.48). All pins should be numbered.
#40 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C4: SCHEMATIC1, PAGE1 (241.30, 66.04). All pins should be numbered.
#41 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C4: SCHEMATIC1, PAGE1 (241.30, 66.04). All pins should be
numbered.
#42 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , MT1: SCHEMATIC1, PAGE1 (99.06, 17.78). All pins should be numbered.
#43 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package ANT , ANT1: SCHEMATIC1, PAGE1 (22.86, 101.60). All pins should be numbered.
#44 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C_0 , C17: SCHEMATIC1, PAGE1 (53.34, 129.54). All pins should be numbered.
#45 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C_0 , C17: SCHEMATIC1, PAGE1 (53.34, 129.54). All pins should be numbered.
#46 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , BKGD: SCHEMATIC1, PAGE1 (48.26, 30.48). All pins should be numbered.
#47 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , RST: SCHEMATIC1, PAGE1 (48.26, 20.32). All pins should be numbered.
#48 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , VDD: SCHEMATIC1, PAGE1 (17.78, 10.16). All pins should be numbered.
#49 ER
ROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C_0 , C15: SCHEMATIC1, PAGE1 (68.58, 119.38). All pins should be numbered.
#50 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C_0 , C15: SCHEMATIC1, PAGE1 (68.58, 119.38). All pins should be numbered.
#51 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C7: SCHEMATIC1, PAGE1 (149.86, 93.98). All pins should be numbered.
#52 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C7: SCHEMATIC1, PAGE1 (149.86, 93.98). All pins should be numbered.
#53 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C3: SCHEMATIC1, PAGE1 (208.28, 66.04). All pins should be numbered.
#54 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C3: SCHEMATIC1, PAGE1 (208.28, 66.04). All pins should be numbered.
#55 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C10: SCHEMATIC1, PAGE1 (106.68, 101.60). All pins should be numbered.
#56 ERROR(ORCAP-36022): Pin
number missing from Pin "2" of Package C/C , C10: SCHEMATIC1, PAGE1 (106.68, 101.60). All pins should be numbered.
#57 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package INDUCTOR_0 , L3: SCHEMATIC1, PAGE1 (40.64, 119.38). All pins should be numbered.
#58 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package INDUCTOR_0 , L3: SCHEMATIC1, PAGE1 (40.64, 119.38). All pins should be numbered.
#59 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package INDUCTOR_0 , L2: SCHEMATIC1, PAGE1 (93.98, 104.14). All pins should be numbered.
#60 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package INDUCTOR_0 , L2: SCHEMATIC1, PAGE1 (93.98, 104.14). All pins should be numbered.
#61 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C8: SCHEMATIC1, PAGE1 (154.94, 93.98). All pins should be numbered.
#62 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C8: SCHEMATIC1, PAGE1 (154.94, 93.98). All pins should be numbered.
#63 ERROR(ORCAP-36022): Pin
number missing from Pin "1" of Package X-TAL_1 , Y1: SCHEMATIC
1, PAGE1 (223.52, 55.88). All pins should be numbered.
#64 ERROR(ORCAP-36022): Pin number missing from Pin "3" of Package X-TAL_1 , Y1: SCHEMATIC1, PAGE1 (223.52, 55.88). All pins should be numbered.
#65 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package X-TAL_1 , Y1: SCHEMATIC1, PAGE1 (223.52, 55.88). All pins should be numbered.
#66 ERROR(ORCAP-36022): Pin number missing from Pin "4" of Package X-TAL_1 , Y1: SCHEMATIC1, PAGE1 (223.52, 55.88). All pins should be numbered.
#67 ERROR(ORCAP-36018): Aborting Netlisting... Please correct the above errors and retry.
Exiting... "C:\Cadence\SPB_17.2\tools\bin\pstswp.exe" -pst -d "C:\USERS\Q8941\DESKTOP\WEBSTORAGE\8700 測試參考資料TX144\TX144.DSN" -n "C:\USERS\Q8941\DESKTOP\WEBSTORAGE\8700 測試參考資料TX144\allegro" -c "C:\Cadence\SPB_17.2\tools/capture/allegro.cfg" -v 3 -l 31 -s "" -j "PCB Footprint" -hpath "HPathForCollision"
INFO(ORCAP-32005): *** Done ***
在PCB Footprint 对应的框中填入C9所选原件的尺寸，比如CP0603 。然后保存并重新create netlist，类似上面的问题就可解决。
2. #31 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C9: SCHEMATIC1, PAGE1 (175.26, 93.98). All pins should be numbered.8
这类问题是以为在制作symbol时，没有给package 的pin 编号。处理也不复杂，有两种方法：
1）.第一种，直接修改原理图symbol，然后在在原理图中design cache中进行更新后，在进行create netlist 即可解决；

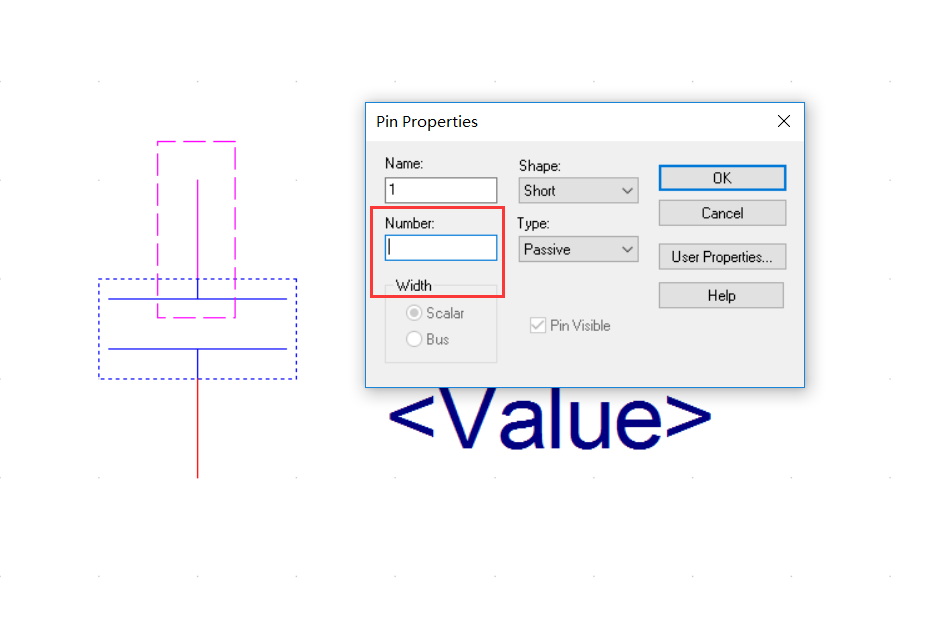

2）.直接在原理图找到C9, 右键选择edit part ，这样就可以打开C9的符号元件。双击C9的pin脚会弹出如下的会话框：
在Number下方的框中输入pin number，注意管脚之间不要有pin number 重复，否则网表时还会出问题。 此类的其它问题，都按照这个方式处理，处理完后，更新一下design caches 然后重新create netlist 话就不会再出现这样的问题。
3.#27 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 20: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renum'
类似上面的这几个ERROR可以通过修改BA1404的symbol，将N/C进行编号命名，比如分别将name设置成N/C1，N/C2，...等，就可解决。
按照上面的方法修复你的symbol库元件和原理图，然后重新创建网表。试试看，如果还有问题，可以继续跟帖
#1 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C9: SCHEMATIC1, PAGE1 (175.26, 93.98).
#2 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance R3: SCHEMATIC1, PAGE1 (210.82, 45.72).
#3 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance MT2: SCHEMATIC1, PAGE1 (99.06, 27.94).
#4 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance R2: SCHEMATIC1, PAGE1 (114.30, 50.80).
#5 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance GND: SCHEMATIC1, PAGE1 (17.78, 20.32).
#6 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance BT1: SCHEMATIC1, PAGE1 (27.94, 55.88).
#7 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance TP1: SCHEMATIC1, PAGE1 (17.78, 30.48).
#8 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C4: SCHEMATIC1, PAGE1 (241.30, 66.04).
#9 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C5: SCHEMATIC1, PAGE1 (43.18, 66.04).
#10 ERROR(ORCAP-36002): Property "P
CB Footprint" missing from instance MT1: SCHEMATIC1, PAGE1 (99.06, 17.78).
#11 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance ANT1: SCHEMATIC1, PAGE1 (22.86, 101.60).
#12 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C17: SCHEMATIC1, PAGE1 (53.34, 129.54).
#13 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C6: SCHEMATIC1, PAGE1 (58.42, 66.04).
#14 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance BKGD: SCHEMATIC1, PAGE1 (48.26, 30.48).
#15 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance RST: SCHEMATIC1, PAGE1 (48.26, 20.32).
#16 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance VDD: SCHEMATIC1, PAGE1 (17.78, 10.16).
#17 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C15: SCHEMATIC1, PAGE1 (68.58, 119.38).
#18 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C7: SCHEMATIC1, PAGE1 (149.86, 93.98).
#19 ERROR(ORCAP-36002): Property "PCB Footprint" missing
from instance C3: SCHEMATIC1, PAGE1 (208.28, 66.04).
#20 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C10: SCHEMATIC1, PAGE1 (106.68, 101.60).
#21 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance L3: SCHEMATIC1, PAGE1 (40.64, 119.38).
#22 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance U2: SCHEMATIC1, PAGE1 (142.24, 22.86).
#23 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance L2: SCHEMATIC1, PAGE1 (93.98, 104.14).
#24 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C8: SCHEMATIC1, PAGE1 (154.94, 93.98).
#25 ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance Y1: SCHEMATIC1, PAGE1 (223.52, 55.88).
#26 ERROR(ORCAP-36041): Duplicate Pin Name "+" found on Package BATTERY_6 , BT1 Pin Number 3: SCHEMATIC1, PAGE1 (27.94, 55.88). Please renumber one of these.
#27 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 20: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renum
ber one of these.
#28 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 21: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renumber one of these.
#29 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 22: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renumber one of these.
#30 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 23: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renumber one of these.
#31 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C9: SCHEMATIC1, PAGE1 (175.26, 93.98). All pins should be numbered.
#32 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C9: SCHEMATIC1, PAGE1 (175.26, 93.98). All pins should be numbered.
#33 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package R , R3: SCHEMATIC1, PAGE1 (210.82, 45.72). All pins should be numbered.
#34 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package R , R3: SCHEMATIC1, PAGE1 (210.
82, 45.72). All pins should be numbered.
#35 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , MT2: SCHEMATIC1, PAGE1 (99.06, 27.94). All pins should be numbered.
#36 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package R , R2: SCHEMATIC1, PAGE1 (114.30, 50.80). All pins should be numbered.
#37 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package R , R2: SCHEMATIC1, PAGE1 (114.30, 50.80). All pins should be numbered.
#38 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , GND: SCHEMATIC1, PAGE1 (17.78, 20.32). All pins should be numbered.
#39 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , TP1: SCHEMATIC1, PAGE1 (17.78, 30.48). All pins should be numbered.
#40 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C4: SCHEMATIC1, PAGE1 (241.30, 66.04). All pins should be numbered.
#41 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C4: SCHEMATIC1, PAGE1 (241.30, 66.04). All pins should be
numbered.
#42 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , MT1: SCHEMATIC1, PAGE1 (99.06, 17.78). All pins should be numbered.
#43 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package ANT , ANT1: SCHEMATIC1, PAGE1 (22.86, 101.60). All pins should be numbered.
#44 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C_0 , C17: SCHEMATIC1, PAGE1 (53.34, 129.54). All pins should be numbered.
#45 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C_0 , C17: SCHEMATIC1, PAGE1 (53.34, 129.54). All pins should be numbered.
#46 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , BKGD: SCHEMATIC1, PAGE1 (48.26, 30.48). All pins should be numbered.
#47 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , RST: SCHEMATIC1, PAGE1 (48.26, 20.32). All pins should be numbered.
#48 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package tp_0 , VDD: SCHEMATIC1, PAGE1 (17.78, 10.16). All pins should be numbered.
#49 ER
ROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C_0 , C15: SCHEMATIC1, PAGE1 (68.58, 119.38). All pins should be numbered.
#50 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C_0 , C15: SCHEMATIC1, PAGE1 (68.58, 119.38). All pins should be numbered.
#51 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C7: SCHEMATIC1, PAGE1 (149.86, 93.98). All pins should be numbered.
#52 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C7: SCHEMATIC1, PAGE1 (149.86, 93.98). All pins should be numbered.
#53 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C3: SCHEMATIC1, PAGE1 (208.28, 66.04). All pins should be numbered.
#54 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C3: SCHEMATIC1, PAGE1 (208.28, 66.04). All pins should be numbered.
#55 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C10: SCHEMATIC1, PAGE1 (106.68, 101.60). All pins should be numbered.
#56 ERROR(ORCAP-36022): Pin
number missing from Pin "2" of Package C/C , C10: SCHEMATIC1, PAGE1 (106.68, 101.60). All pins should be numbered.
#57 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package INDUCTOR_0 , L3: SCHEMATIC1, PAGE1 (40.64, 119.38). All pins should be numbered.
#58 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package INDUCTOR_0 , L3: SCHEMATIC1, PAGE1 (40.64, 119.38). All pins should be numbered.
#59 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package INDUCTOR_0 , L2: SCHEMATIC1, PAGE1 (93.98, 104.14). All pins should be numbered.
#60 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package INDUCTOR_0 , L2: SCHEMATIC1, PAGE1 (93.98, 104.14). All pins should be numbered.
#61 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C8: SCHEMATIC1, PAGE1 (154.94, 93.98). All pins should be numbered.
#62 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package C/C , C8: SCHEMATIC1, PAGE1 (154.94, 93.98). All pins should be numbered.
#63 ERROR(ORCAP-36022): Pin
number missing from Pin "1" of Package X-TAL_1 , Y1: SCHEMATIC
1, PAGE1 (223.52, 55.88). All pins should be numbered.
#64 ERROR(ORCAP-36022): Pin number missing from Pin "3" of Package X-TAL_1 , Y1: SCHEMATIC1, PAGE1 (223.52, 55.88). All pins should be numbered.
#65 ERROR(ORCAP-36022): Pin number missing from Pin "2" of Package X-TAL_1 , Y1: SCHEMATIC1, PAGE1 (223.52, 55.88). All pins should be numbered.
#66 ERROR(ORCAP-36022): Pin number missing from Pin "4" of Package X-TAL_1 , Y1: SCHEMATIC1, PAGE1 (223.52, 55.88). All pins should be numbered.
#67 ERROR(ORCAP-36018): Aborting Netlisting... Please correct the above errors and retry.
Exiting... "C:\Cadence\SPB_17.2\tools\bin\pstswp.exe" -pst -d "C:\USERS\Q8941\DESKTOP\WEBSTORAGE\8700 測試參考資料TX144\TX144.DSN" -n "C:\USERS\Q8941\DESKTOP\WEBSTORAGE\8700 測試參考資料TX144\allegro" -c "C:\Cadence\SPB_17.2\tools/capture/allegro.cfg" -v 3 -l 31 -s "" -j "PCB Footprint" -hpath "HPathForCollision"
INFO(ORCAP-32005): *** Done ***
从log看是因为问题太多，创建netlist最后被终止了。问题既有原理图symbol制作的问题，也有属设置缺失的问题。有些问题重复出现，下面分类举例说明类似问题的解决方法。
以下举例：
1.ERROR(ORCAP-36002): Property "PCB Footprint" missing from instance C9: SCHEMATIC1, PAGE1 (175.26, 93.98).

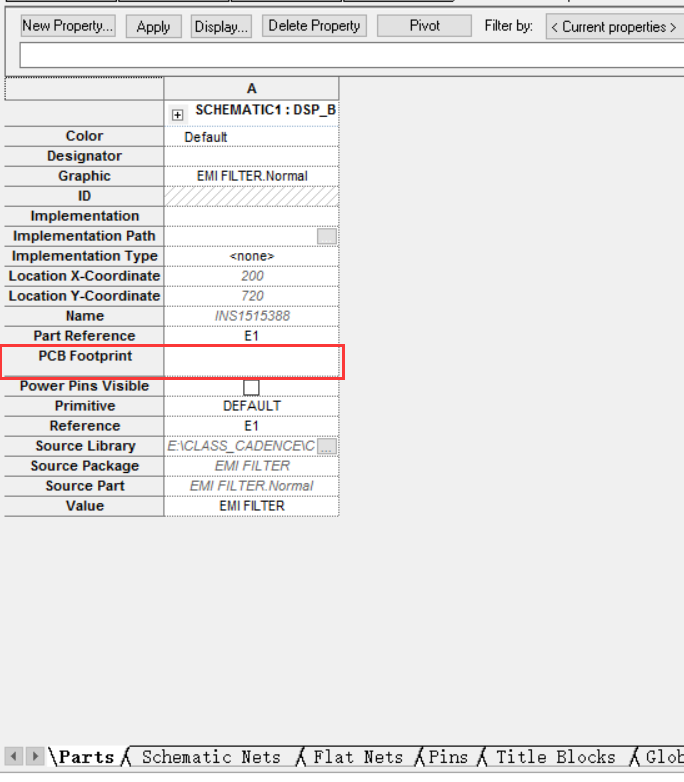

上面的是因为原理图中没有指定Footprint, 修正办法也很简单： 在原理图中找到 C9，然后双击或通过右键选中edit properties,进入类似下面的界面：
在PCB Footprint 对应的框中填入C9所选原件的尺寸，比如CP0603 。然后保存并重新create netlist，类似上面的问题就可解决。
2. #31 ERROR(ORCAP-36022): Pin number missing from Pin "1" of Package C/C , C9: SCHEMATIC1, PAGE1 (175.26, 93.98). All pins should be numbered.8
这类问题是以为在制作symbol时，没有给package 的pin 编号。处理也不复杂，有两种方法：
1）.第一种，直接修改原理图symbol，然后在在原理图中design cache中进行更新后，在进行create netlist 即可解决；
2）.直接在原理图找到C9, 右键选择edit part ，这样就可以打开C9的符号元件。双击C9的pin脚会弹出如下的会话框：
在Number下方的框中输入pin number，注意管脚之间不要有pin number 重复，否则网表时还会出问题。 此类的其它问题，都按照这个方式处理，处理完后，更新一下design caches 然后重新create netlist 话就不会再出现这样的问题。
3.#27 ERROR(ORCAP-36041): Duplicate Pin Name "N/C" found on Package BA1404_9 , U2 Pin Number 20: SCHEMATIC1, PAGE1 (142.24, 22.86). Please renum'
类似上面的这几个ERROR可以通过修改BA1404的symbol，将N/C进行编号命名，比如分别将name设置成N/C1，N/C2，...等，就可解决。
按照上面的方法修复你的symbol库元件和原理图，然后重新创建网表。试试看，如果还有问题，可以继续跟帖
问题挺多的，建议检查pcb封装与原理图封装的管脚是否匹配，还有就是路径是否正确
厉害了！
