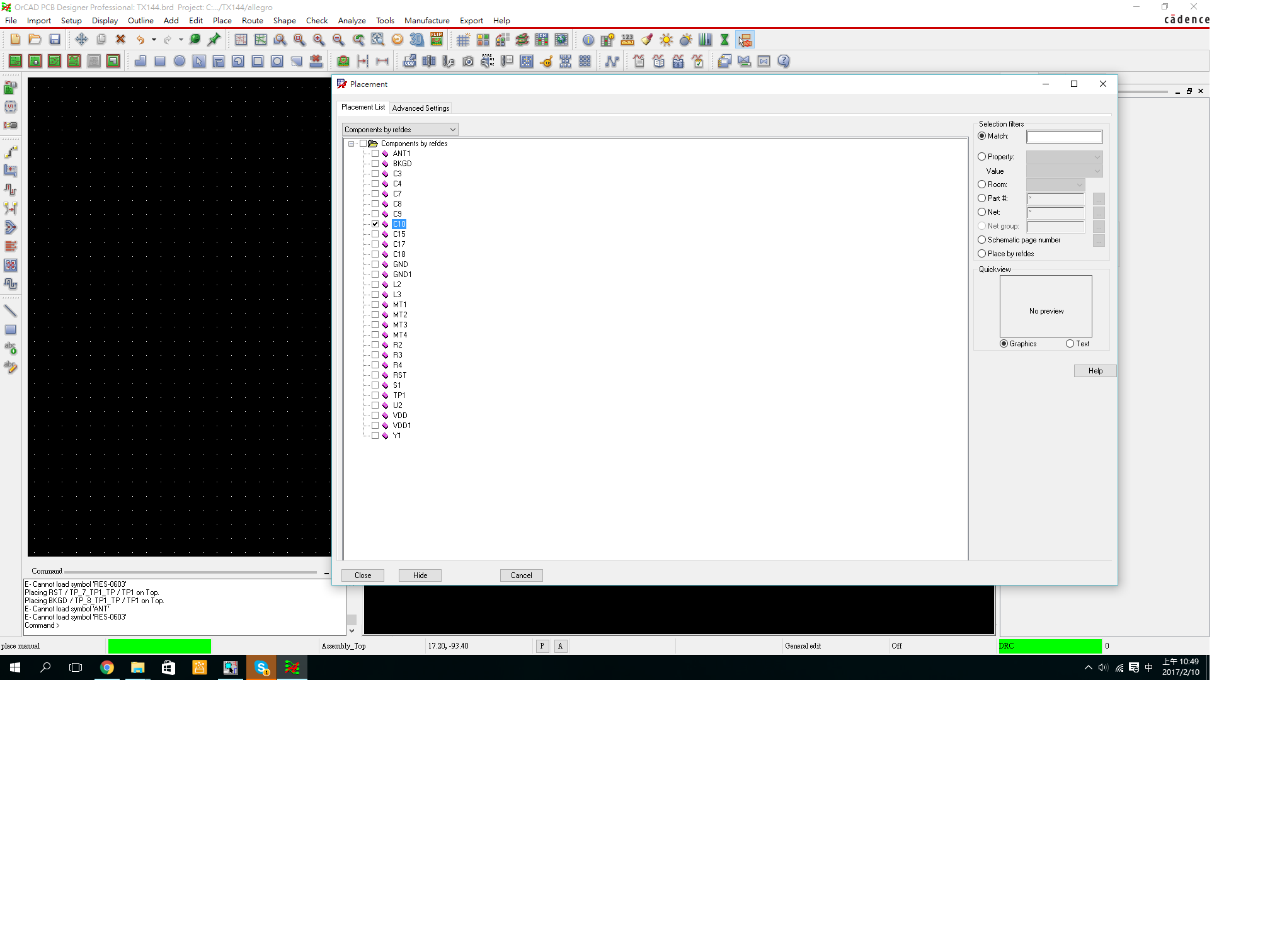

零件帶入之後不顯示

creat netlist先顯示這些碼之後進入allegro
------ Oversights/Warnings/Errors ------

#1   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'ANT' used by RefDes ANT1 for device 'ANT_0_ANT_ANT' not found in PSMPATH or must be "dbdoctor"ed.
#2   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C10 for device 'C/C_2_RES-0603_100PF/50V' not found in PSMPATH or must be "dbdoctor"ed.
#3   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C15 for device 'C/C_0_RES-0603_100PF/50V' not found in PSMPATH or must be "dbdoctor"ed.
#4   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C17 for device 'C/C_0_RES-0603_3PF/50V' not found in PSMPATH or must be "dbdoctor"ed.
#5   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C18 for device 'CAP NP_5_RES-0603_0.1UF/16V' not found in PSMPATH or must be "dbdoctor"ed.
#6   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C3 for device 'C/C_2_RES-0603_33PF/50V' not found in PSMPATH or must be "dbdoctor"ed.
#7   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C7 for device 'C/C_2_RES-0603_0.1UF/16V' not found in PSMPATH or must be "dbdoctor"ed.
#8   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes C9 for device 'C/C_2_RES-0603_0.47UF/16V' not found in PSMPATH or must be "dbdoctor"ed.
#9   WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'DIO-0603' used by RefDes L2 for device 'INDUCTOR_4_DIO-0603_56NH' not found in PSMPATH or must be "dbdoctor"ed.
#10  WARNING(SPMHNI-192): Device/S
ymbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'DIO-0603' used by RefDes L3 for device 'INDUCTOR_3_DIO-0603_15NH' not found in PSMPATH or must be "dbdoctor"ed.
#11  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol '010' used by RefDes MT1 for device 'TP_11_010_TP' not found in PSMPATH or must be "dbdoctor"ed.
#12  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol '010' used by RefDes MT2 for device 'TP_12_010_TP' not found in PSMPATH or must be "dbdoctor"ed.
#13  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes R2 for device 'R_4_RES-0603_10K' not found in PSMPATH or must be "dbdoctor"ed.
#14  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'RES-0603' used by RefDes R4 for device 'R_4_RES-0603_R' not found in PSMPATH or must be "dbdoctor"ed.
#15  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'S' used by RefDes S1 for device 'SW PUSHBUTTON_5_S_DTSM-62N' not found in PSMPATH or must be "dbdoctor"ed.
#16  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol '8700' used by RefDes U2 for device 'BA1404_12_8700_MPXY8700' not found in PSMPATH or must be "dbdoctor"ed.
#17  WARNING(SPMHNI-192): Device/Symbol check warning detected. [help]
WARNING(SPMHNI-194): Symbol 'Y' used by RefDes Y1 for device 'X-TAL_5_Y_26MHZ' not found in PSMPATH or must be "dbdoctor"ed.
------ Library Paths ------
MODULEPATH =  C:/Users/q8941/AppData/Roaming/SPB_Data/symbol/package
           .
           C:/Cadence/SPB_17.2/share/local/pcb/modules
PSMPATH =  C:/Users/q8941/AppData/Roaming/SPB_Data/symbol/package
           .
           symbols
           ..
           ../symbols
           C:/Cadence/SPB_17.2/share/local/pcb/symbols
           C:/Cadence/SPB_17.2/share/pcb/pcb_lib/symbols
           C:/Cadence/SPB_17.2/share/pcb/allegrolib/symbols
PADPATH =  C:/Users/q8941/AppData/Roaming/SPB_Data/symbol/package
           .
           symbols
           ..
           ../symbols
           C:/Cadence/SPB_17.2/share/local/pcb/padstacks
           C:/Cadence/SPB_17.2/share/pcb/pcb_lib/symbols
           C:/Cadence/SPB_17.2/share/pcb/allegrolib/symbols

------ Summary Statistics ------

netrev run on Feb 10 10:46:46 2017
   DESIGN NAME : 'TX144'
   PACKAGING ON Mar  2 2016 00:37:24
   COMPILE 'logic'
   CHECK_PIN_NAMES OFF
   CROSS_REFERENCE OFF
   FEEDBACK OFF
   INCREMENTAL OFF
   INTERFACE_TYPE PHYSICAL
   MAX_ERRORS 500
   MERGE_MINIMUM 5
   NET_NAME_CHARS '#%&()*+-./:=>?@[]^_`|'
   NET_NAME_LENGTH 24
   OVERSIGHTS ON
   REPLACE_CHECK OFF
   SINGLE_NODE_NETS ON
   SPLIT_MINIMUM 0
   SUPPRESS   20
   WARNINGS ON
No error detected
No oversight detected
17 warnings detected
cpu time      0:00:19
elapsed time  0:00:01
INFO(ORCAP-32005): *** Done ***

之後要放零件都無法帶入，無法顯示

是封装路径问题吧?

谢谢，分享

同2楼

路径?

以解決
