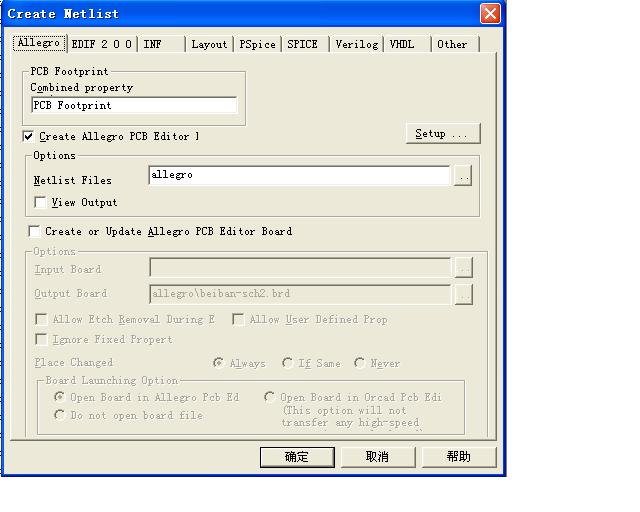

allegro 网表采用如图方法导入就失败, 而采用第三方导入就能成功，为何？

allegro 网表采用如图方法导入就失败, 而采用第三方导入就能成功，为何?

allegro 库文件还有其他的设置没有?

把错误讯息贴出来呀。

用第三方软件好像同步性就不好了。

在线等待...................................

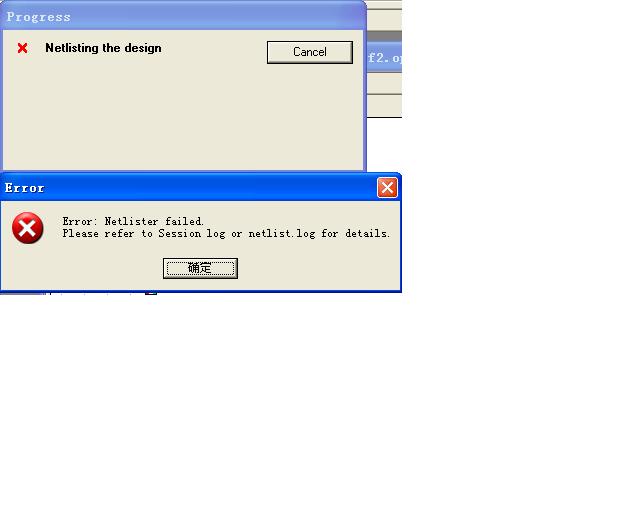

看看吧, 错误就这样子?

把Session Log 里的错误信息贴出来呀。 Windows-Session log

你贴这个图有什么用啊。

这个已经告诉你在Session Log上看Details了

不好意思,忘了！

错误如下:

Netlist Format: telesis.dll
Design Name: C:\A-F\PRODUCT\BEIBAN\SCH\SCH0326\BEIBAN-SCH2.DSN
100 Parts, 7 Library Parts, 2635 Nets, 12899 Pins
Creating Netlist...
Done

看这个才是:

* Netlisting the design
*
********************************************************************************
Design Name:
C:\A-F\product\beiban\SCH\sch0326\beiban-sch2.dsn
Netlist Directory:
C:\A-F\product\beiban\SCH\sch0326\allegro
Configuration File:
C:\Cadence\SPB_15.5\tools\capture\allegro.cfg

Spawning... "C:\Cadence\SPB_15.5\tools\capture\pstswp.exe" -pst -d "C:\A-F\product\beiban\SCH\sch0326\beiban-sch2.dsn" -n "C:\A-F\product\beiban\SCH\sch0326\allegro" -c "C:\Cadence\SPB_15.5\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"
#1 Error   [ALG0050] Duplicate Pin Name "MH" found on Package DIN16X3 , XP26_2 Pin Number B: TOPV22.SchDoc, Slot 17&23&26.SchDoc (12.30, 1.10). Please renumber one of these.
#2 Error   [ALG0050] Duplicate Pin Name "MH" found on Package DIN16X3 , XP_F1 Pin Number B: TOPV22.SchDoc, Slot FAN.SchDoc (3.30, 1.30). Please renumber one of these.
#3 Error   [ALG0050] Duplicate Pin Name "MH" found on Package DIN16X3 , XP_F2 Pin Number B: TOPV22.SchDoc, Slot FAN.SchDoc (5.90, 1.30). Please renumber one of these.
#4 Error   [ALG0050] Duplicate Pin Name "MH" found on Package DIN16X3 , XP_F3 Pin Number B: TOPV22.SchDoc, Slot FAN.SchDoc (8.90, 1.30). Please renumber one of these.
#5 Error   [ALG0050] Duplicate Pin Name "MH" found on Package DIN16X3 , XP23_2 Pin Number B: TOPV22.SchDoc, Slot 17&23&26.SchDoc (9.90, 1.10). Please renumber one of these.
#6 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R1: TOPV22.SchDoc, Slot 1.SchDoc (1.00, 1.88). All pins should be numbered.
#7 Error   [ALG0031] Pi
n number missing from Pin "2" of Package RES2 , R1: TOPV22.SchDoc, Slot 1.SchDoc (1.00, 1.88). All pins should be numbered.
#8 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R2: TOPV22.SchDoc, Slot 1.SchDoc (0.92, 1.90). All pins should be numbered.
#9 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R2: TOPV22.SchDoc, Slot 1.SchDoc (0.92, 1.90). All pins should be numbered.
#10 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R3: TOPV22.SchDoc, Slot 1.SchDoc (1.00, 2.78). All pins should be numbered.
#11 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R3: TOPV22.SchDoc, Slot 1.SchDoc (1.00, 2.78). All pins should be numbered.
#12 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R4: TOPV22.SchDoc, Slot 1.SchDoc (0.80, 2.78). All pins should be numbered.
#13 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R4: TOPV22.SchDoc, Slot 1.SchDoc (0.80, 2.78). All pins should be numbered.
#14 Err
or   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R5: TOPV22.SchDoc, Slot 1.SchDoc (5.70, 1.88). All pins should be numbered.
#15 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R5: TOPV22.SchDoc, Slot 1.SchDoc (5.70, 1.88). All pins should be numbered.
#16 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R6: TOPV22.SchDoc, Slot 1.SchDoc (5.90, 1.88). All pins should be numbered.
#17 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R6: TOPV22.SchDoc, Slot 1.SchDoc (5.90, 1.88). All pins should be numbered.
#18 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R7: TOPV22.SchDoc, Slot 1.SchDoc (5.70, 2.78). All pins should be numbered.
#19 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R7: TOPV22.SchDoc, Slot 1.SchDoc (5.70, 2.78). All pins should be numbered.
#20 Error   [ALG0031] Pin number missing from Pin "1" of Package RES2 , R8: TOPV22.SchDoc, Slot 1.SchDoc (5.90, 2.78). All pins should be
 numbered.
#21 Error   [ALG0031] Pin number missing from Pin "2" of Package RES2 , R8: TOPV22.SchDoc, Slot 1.SchDoc (5.90, 2.78). All pins should be numbered.
#22 Error   [ALG0031] Pin number missing from Pin "1" of Package CAP , C1: TOPV22.SchDoc, Slot 1.SchDoc (5.20, 8.50). All pins should be numbered.
#23 Error   [ALG0031] Pin number missing from Pin "2" of Package CAP , C1: TOPV22.SchDoc, Slot 1.SchDoc (5.20, 8.50). All pins should be numbered.
#24 Aborting Netlisting... Please correct the above errors and retry.

Exiting... "C:\Cadence\SPB_15.5\tools\capture\pstswp.exe" -pst -d "C:\A-F\product\beiban\SCH\sch0326\beiban-sch2.dsn" -n "C:\A-F\product\beiban\SCH\sch0326\allegro" -c "C:\Cadence\SPB_15.5\tools\capture\allegro.cfg" -v 3 -j "PCB Footprint"

*** Done ***

Pin Number 是不可以为空白的

Pin Name 是不可以重复的，除了属性是Power

如果用自带的Capture CIS生成网表可以直接导入到Allegro中。当然它有自己的一套规则，需要遵守。把光标放在[ALG0031]上，按F1键，会跳出具体的说明的。

如果用单独的Orcad，需要提供每个元件的Device。

你是用第三方软件生成网表的。这个网表能否成功导入到ALlegro的PCB中呢?如果可以，你就用这个好了。但是反标就不方便了

非常,非常的感谢小编！

先调整一下SCH再看看.

谢谢分享经验！
