关于原理图导入LAYOUT的问题
录入:edatop.com 点击:

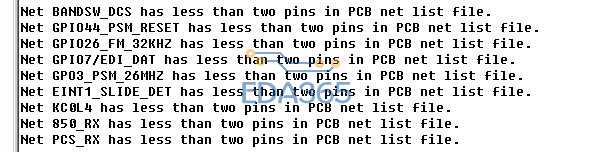

啊原理图导入LAYOUT在记事本里出现 Net BANDSW_DCS has less than two pins in pcb net list file.
Net GPIO44_PSM_RESET has less than two pins in PCB net list file.
Net GPIO26_FM_32KHZ has less than two pins in PCB net list file.
Net GPIO7/EDI_DAT has less than two pins in PCB net list file.
Net GPO3_PSM_26MHZ has less than two pins in PCB net list file.
Net EINT1_SLIDE_DET has less than two pins in PCB net list file.
Net KC0L4 has less than two pins in PCB net list file.
Net 850_RX has less than two pins in PCB net list file.
Net PCS_RX has less than two pins in PCB net list file. 这是哪个地方出来问题啊 求救!
Net GPIO44_PSM_RESET has less than two pins in PCB net list file.
Net GPIO26_FM_32KHZ has less than two pins in PCB net list file.
Net GPIO7/EDI_DAT has less than two pins in PCB net list file.
Net GPO3_PSM_26MHZ has less than two pins in PCB net list file.
Net EINT1_SLIDE_DET has less than two pins in PCB net list file.
Net KC0L4 has less than two pins in PCB net list file.
Net 850_RX has less than two pins in PCB net list file.
Net PCS_RX has less than two pins in PCB net list file. 这是哪个地方出来问题啊 求救!
这些网络都是单点网络,每个网络需要至少两点连接,你看看原理图有否连上两点!若确定是孤立的单点网络,到导入PCB的时候会自动删除,你无须理会的
那我仔细的看看谢谢
检查原理图,确认无误,重新导网表
