CST2013: Filter Analysis / Group Delay Computation

录入:edatop.com     点击:

Home: Macros加载中...Macros加载中...Filter Analysis加载中...Group Delay Computation

The Group delay time is defined as the negative derivative of the S-Parameter phase versus omega (2*pi*f). The macro performs this mathematical operation for any S-Parameter data and any mode pertinent to the port. If the phase signal is low in resolution with respect to frequency, unphysical discontinuities might appear and can be blend away by a userdefined threshold angle. An extra window pops up in this case containing a list of frequencies where this has happened.



The group delay is available under 1D Results/Group Delay Time. Additional output for narrowband bandpass filters is also accessible: the loaded Q-factor and coupling distance Ke for the first resonator stage.

加载中...



There exists also a 1D Result Template to calculate Group delay time during parameter sweeping and optimization: 1D / Group Delay Time

Here some typical result curves are shown:

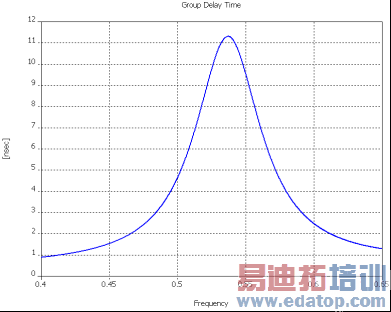

Group delay output

加载中...

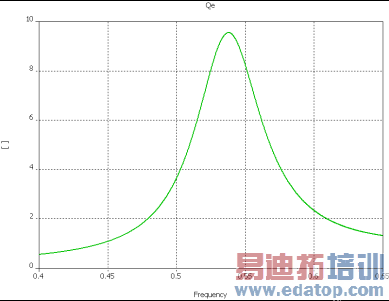

Loaded Quality factor Qe



加载中...

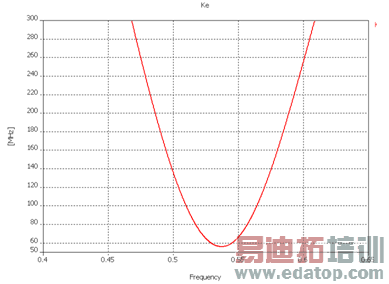

Coupling Bandwidth versus Frequency

加载中...
