CST2013: Graphics / Save Image

Home: MacrosMacrosGraphicsSave Image

This macro can save screen shots taken from the main plot window in many different file formats:

BMP Windows Bitmap

EPS Encapsulated Postscript

GIF  Compuserve GIF

JPG JPEG Format

PNG Portable Network Graphic

PPM Portable Pixmap Format

PSD Adobe Photoshop Bitmap

PS  Adobe PostScript

TGA Truevision Targa

TIF Tagged Image File Format

XPM X11 System Pixmap (color)

XWD X11 Window Dump (color)

Please note: The macro requires the ImageMagick package installed in the global macro folder in the sub folder ImageMagick, which is created and installed automatically during the installation of CST MWS.

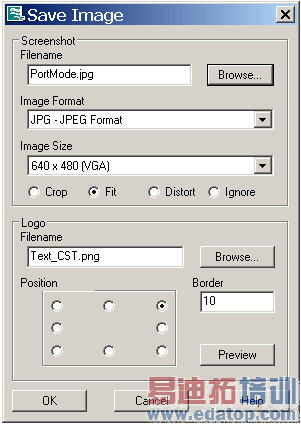

Screenshot frame

Filename, Browse...

The field Filename and the button Browse allow to change the name and location under which the screenshot will be stored. Unless a different location has been specified, the image file will be saved into the current project folder.

Image Format

The file format can be chosen from within this combo box. For the various options, please see the list above.

Image Size

There are different resolution settings available which can be specified using this combo box.

Crop / Fit / Distort / Ignore

Please choose either of these options by selecting the related radio button in order to adjust the picture.

Logo frame

Filename, Browse...

The field Filename and the button Browse allow to specify the logo that will be placed within the snapshot. By default a CST logo will be used.

Position

Defines the general position of the logo within the screen shot.

Border

Specifies the distance between logo and border.

Preview

This button shows a preview of the snapshot based on the current settings, if the file extension is linked to an existing image browser.

OK

This button completes the saving of the image. If the chosen file extension is linked to an existing image browser, the new snapshot will be displayed automatically afterwards.

Cancel

Aborts the export of the image.

Help

Shows this help text.
