CST2013: Farfield / Broadband Farfield Monitors

Home: MacrosMacrosSolverMonitors and ProbesBroadband Field Monitors

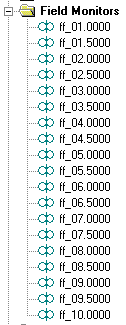

This macro offers the opportunity to define multiple farfield monitors equally spaced over a specified frequency range. Each farfield monitor will have an entry in the navigation tree. The macro can be applied multiple times without overwriting the previous definitions, so that different frequency resolutions can be combined if desired.

frq_low

Lower limit of the frequency range to be covered by the field monitors.

frq_high

Upper limit of the frequency range to be covered by the field monitors.

frq_stepsize

Frequency distance of the frequencies of two neighbouring farfield monitors.

OK

Creates the defined farfield monitors and leaves the dialog box.

Cancel

Closes this dialog box without performing any further action. However the history list will contain a new entry, which does not do any modification to the existing structure.

Help

Shows this help text.
