How can we calculate the radiated power in CST MWS?

录入:edatop.com     点击:
dear friends
hi
I embedded an antenna in a lossy medium and I know the S11 and deliver power 1w but i don't know, how should I calculate the radiated power?
the return loss Figure is resonated at 402MHz to -20dB .
Is this solution sorrect?
S11=10log(P(ref)/P(inc)))=>
-20=10log(P(reflected)/1w)=>P(reflected)=0.01w
P(inc)=P(radiated)+P(ref)=>P(radiated)=0.99

but I have a lossy medium in which the antenna is located.that is
P(radiated)=P(pure_radiation)+P(Loss)

I know the SAR value 135(mw/g), but I don't know how should I calculate the P(Loss) and then the pure value of the P(pure_radiation).
so ,what's the solution?

p(accept)=p(incidence)*s21=0.99w
p(pure_radiation)=p(accept)*Q
那有木有Q值啊?
你知道sar没什么用吧,天线一定不是全向的吧,就算是,也反映不到该点的辐射能量密度,算不了辐射功率的吧。

sorry i don't understand  exactly ,would you please explain more?

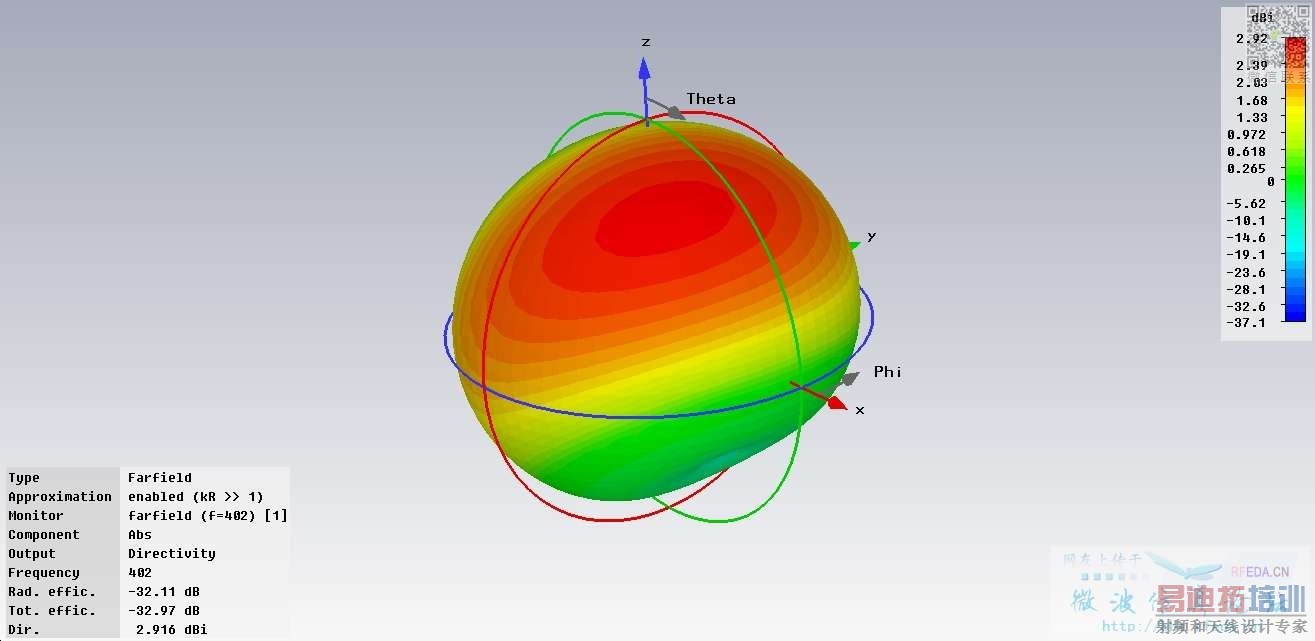

if the radiation pattern be something like this
how we can calculate the radiated power?


试着翻译一下小编的意思,小编是说把一个天线放置在一块有耗介质内部,现在想得到天线通过有耗介质辐射至自由空间的总功率,是吗?
如果是实际测量,小编要如何得到这个参数?
PS:如果可能的话,用自己的机器敲汉字吧。

I found out how should I calculate the radiated power it is calculated from the radiation efficiency of the antenna
radiation efficiency=P(radiated)/P(delivered)
in which the P(delivered)=1w
