CST measurement error (wrong lenght)
录入:edatop.com 点击:
Hi,

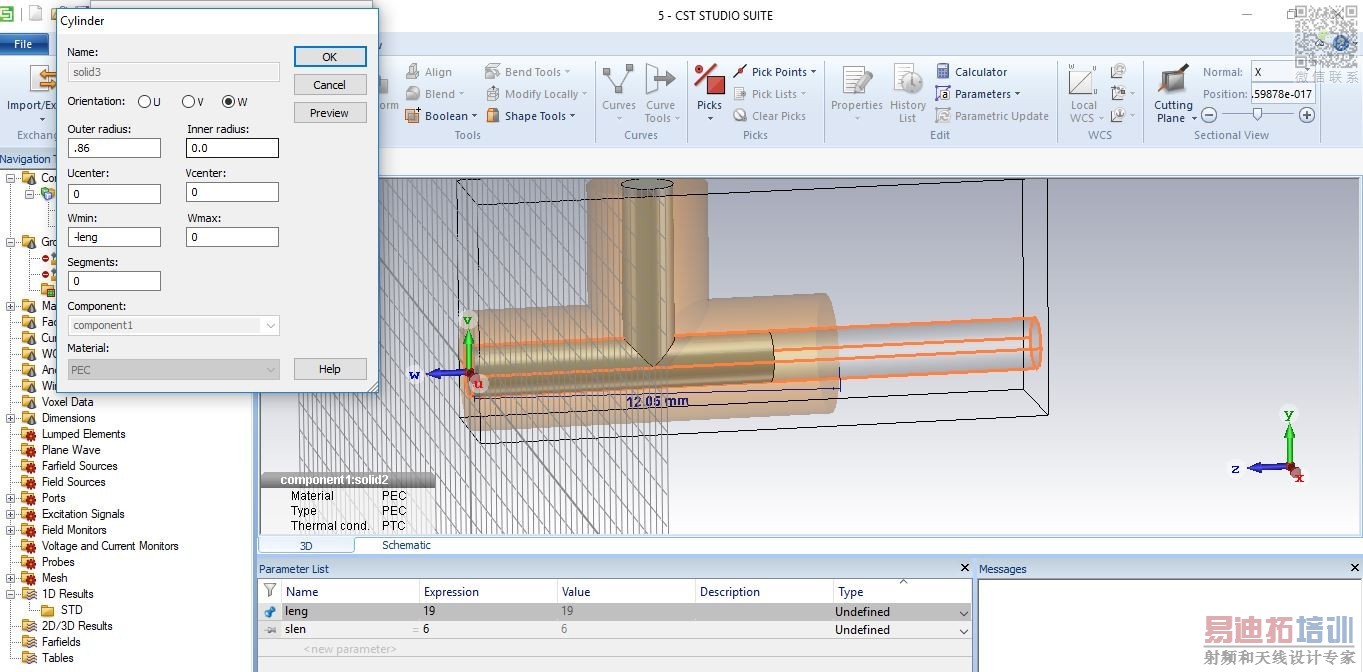

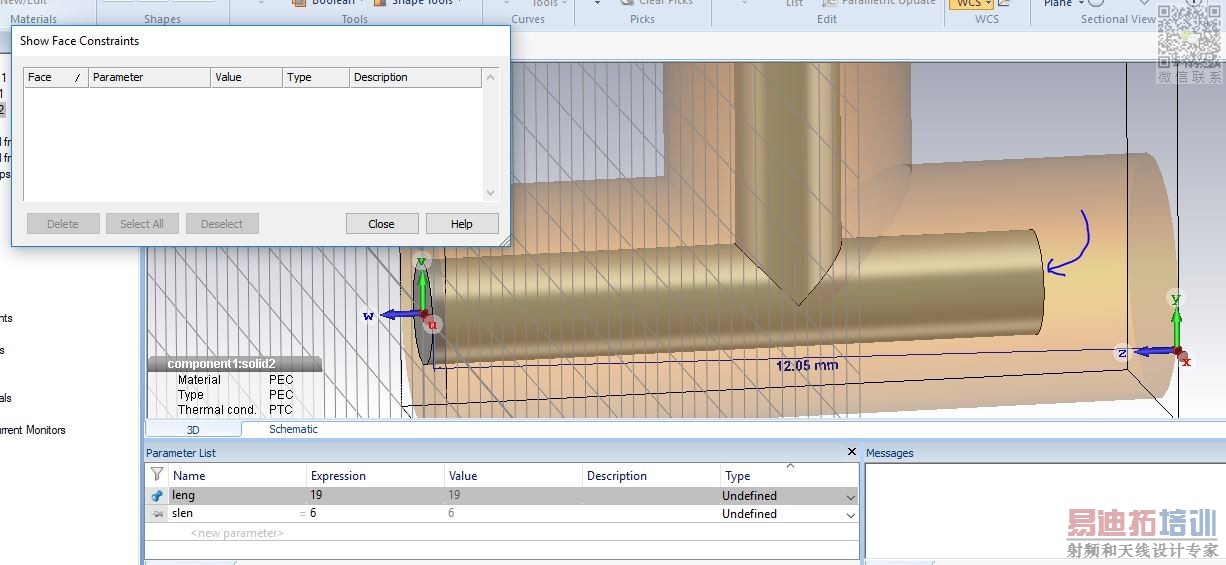

Two days a ago a designed a model in CST software with specific which was defined by some variables. However, after setting and removing the face constraint one the shown face, CST measurement made me crazy.As you can see I have set the leng variable 19 which is more than the total length of my outer shape(19>12.08) but before face constraint it worked fine(leng=9 was completely enough and fine but in this scenario it doesn't work properly) .
Strange:
Two days a ago a designed a model in CST software with specific which was defined by some variables. However, after setting and removing the face constraint one the shown face, CST measurement made me crazy.As you can see I have set the leng variable 19 which is more than the total length of my outer shape(19>12.08) but before face constraint it worked fine(leng=9 was completely enough and fine but in this scenario it doesn't work properly) .
Strange:
