Design Yagi-uda 16elements in CST

Hello everyone ! I`m having a big big problem. I designed a Yagi Uda antenna with 16 elements in CST (wire antenna ) i haved simulate in time domain with meshup . But S1.1 parametres VSWR Gain an others dosen`t look so good .Could someone look at my simulation an tell me....WHAT I AM DOING WRONG!

Why do not you try Uda-Yagi Patch...

Where do i find this patch ?

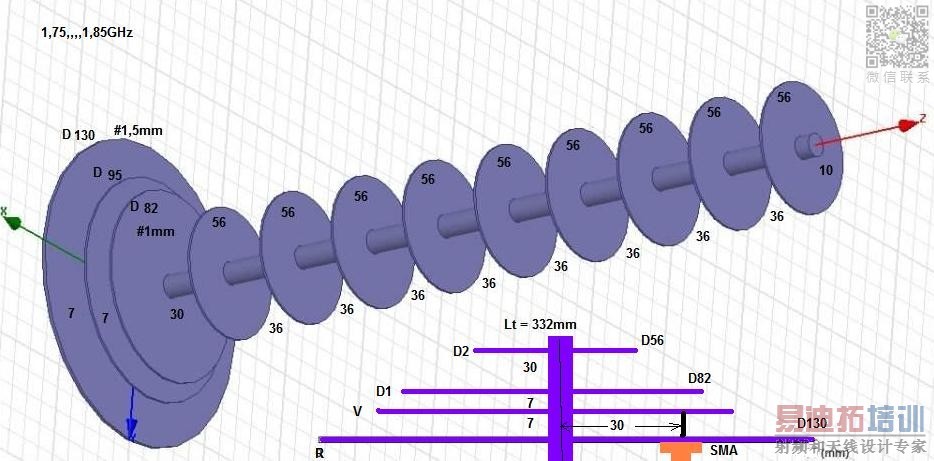

Dimensions for frequency of 1800 MHz

dear fiwi please check my design ..:)

hi sandeepkiranv,
could you please post pictures instead with questions you have in mind?

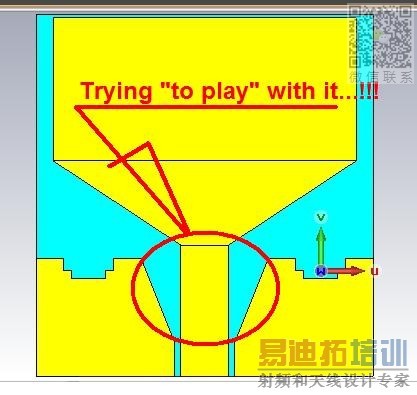

dear pragash i adjusted the waveport dimensions to achieve 50.68 line impedance at 6.5 GHz.

please give ur opinion on that....suppose if i want to check line impedance at other frequencies what i have to do

dear pragash.... i am using using conventional cpw feed

hi sandeepkiranv,
usually we don't adjust the port dimension to achieve 50ohm line impedance. your coplanar have to be 50ohm and there is a guideline to create waveguide port to get accurate results. please refer to video below.

https://www.youtube.com/watch?v=k54XWrcI5Bc

Hi, Pragsh

i watched the video link, this video explains how to create a waveport for inset feeding. But i am using CPW feeding i believe both are two different feeding techniques. did u simulate the cst file i posted here ? please i need help to complete my project i was struck like this 6 months ago, no progress till date :(

...@@@@@

dear fiwi.... i didnot understand ur comment...please elaborate :)

hi,
i have no time to run simulation but i can suggest you ways and we can discuss the output here. waveguide port will still be in the same dimension coplanar waveguide feed i believe.

if you have doubt that your waveguide port affecting your results, you can try simulating with discrete port and compare the results. usually the results of both ports should be comparable.
