50 ohm CPW waveguide port in CST
录入：edatop.com 点击：
Dear all,

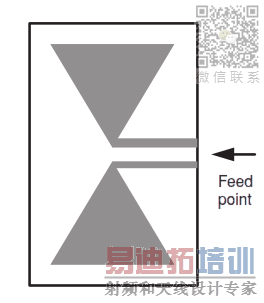

I'm using CST simulation software and I want to know how to insert 50 ohm CPW waveguide port in my model to feed monopole bowtie antenna with the ground on the same plane. the antenna design is attached here. please if any one can help me
Thanks,
Mohamed
I'm using CST simulation software and I want to know how to insert 50 ohm CPW waveguide port in my model to feed monopole bowtie antenna with the ground on the same plane. the antenna design is attached here. please if any one can help me
Thanks,
Mohamed
申明：网友回复良莠不齐，仅供参考。如需专业解答，请学习易迪拓培训专家讲授的CST视频培训教程。
