Wilikinson 2way Combiner port problem in CST
录入：edatop.com 点击：
i designed 1/4 wilkinson 2 way Combiner(40~60mhz).

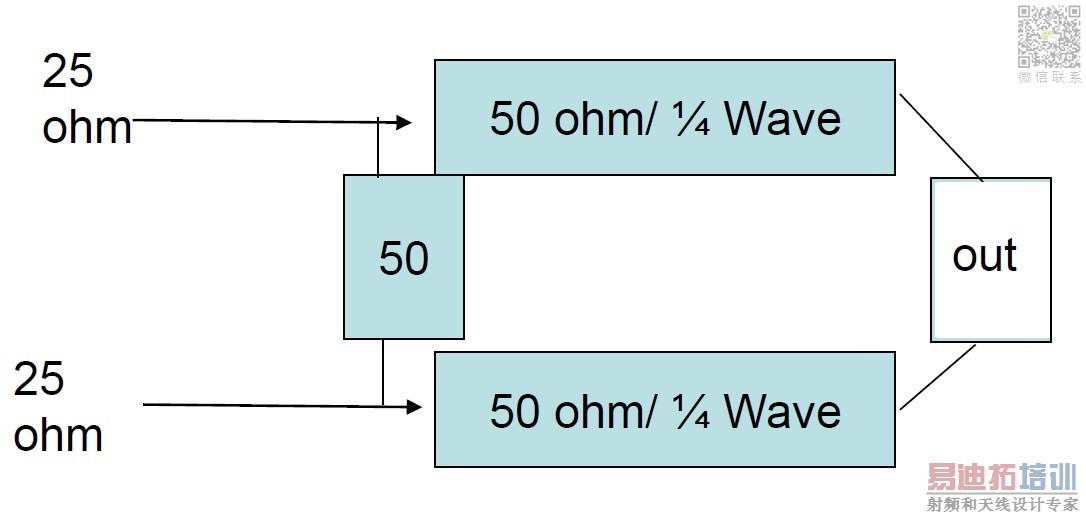

circuit concept is

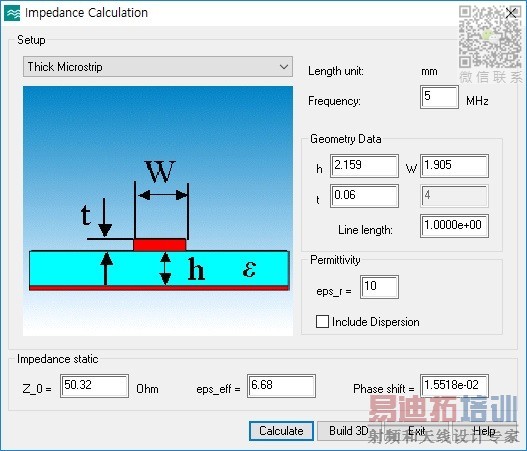

and i used macro of 50ohm line.

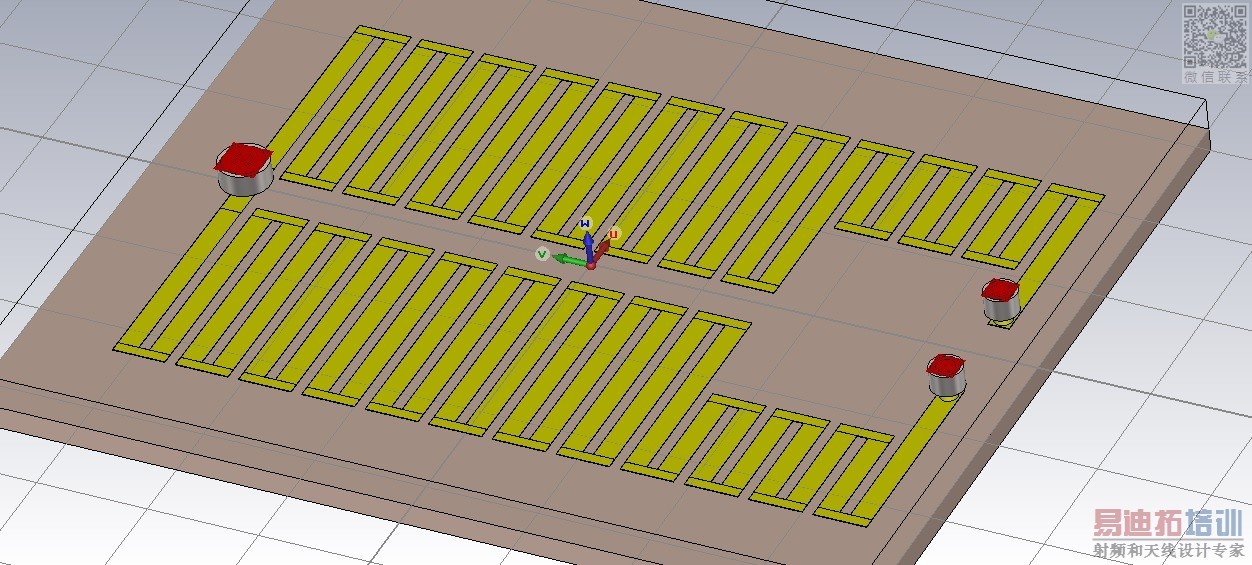

and did make combiner in cst
to this situation,
calculate 25ohm port(IN) & 50hom port(OUT) is this right?
if this is wrong, How to make port?
circuit concept is
and i used macro of 50ohm line.
and did make combiner in cst
to this situation,
calculate 25ohm port(IN) & 50hom port(OUT) is this right?
if this is wrong, How to make port?
申明：网友回复良莠不齐，仅供参考。如需专业解答，请学习易迪拓培训专家讲授的CST视频培训教程。
