How to combine metamaterial design and patch antenna in CST?
录入:edatop.com 点击:
Hi,
I have designed a single unit cell csrr metamaterial and microstrip patch antenna using CST. I don't know how to combine these two structures together and what port (waveguide/discrete) should I used to run the simulation when they are combined. The boundary condition for metamaterial is magnetic for z axis, electric for x axis and open for y axis.

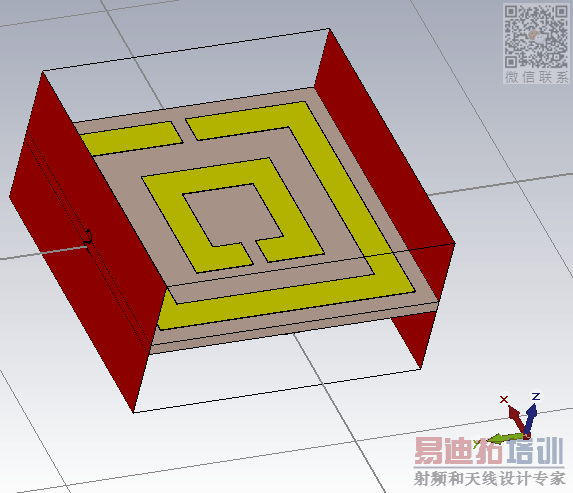

(metamaterial design)

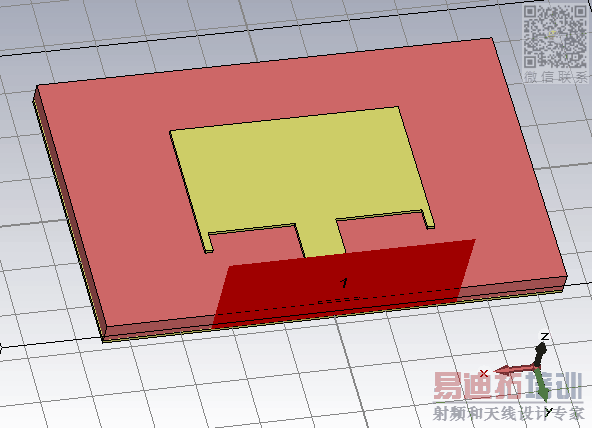

(MPA design)
I have designed a single unit cell csrr metamaterial and microstrip patch antenna using CST. I don't know how to combine these two structures together and what port (waveguide/discrete) should I used to run the simulation when they are combined. The boundary condition for metamaterial is magnetic for z axis, electric for x axis and open for y axis.
(metamaterial design)
(MPA design)
