About the radiation pattern under CST
录入：edatop.com 点击：
Hello everyone I need your help, I do not know if what I'm doing in cst is right or not!
I wish to have E_theta and E_phi radiated by the antenna:

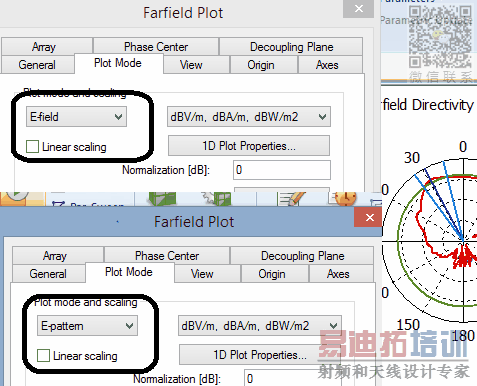

Figure 1. I choose E_field or E_pattern?

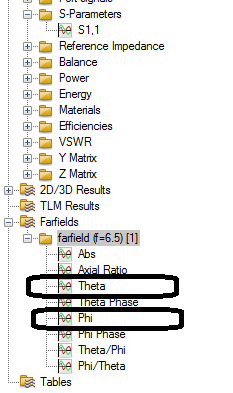

Figure .2. Is this what the E_theta and E_phi ?
Thank you for your help
I wish to have E_theta and E_phi radiated by the antenna:
Figure 1. I choose E_field or E_pattern?
Figure .2. Is this what the E_theta and E_phi ?
Thank you for your help
