T-SRR Antenna design using CST . Help needed

Dear All,

I am doing a simulation using CST v14. My design is attached.

When i set up 2 web guid port with boundary condition it may arise few error.
I con not find out the problem.

If any one help me about that i would be a great beneficial.

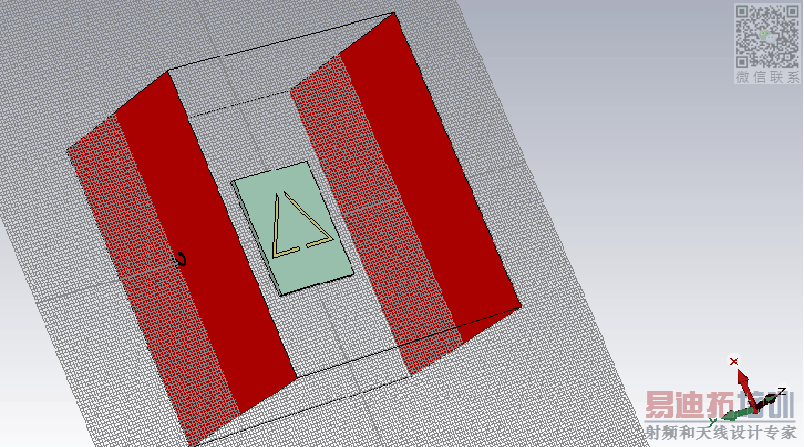

My design is TSRR design on substrate. I want to simulate that design without any error.

If possible pls help me to solve that problem.

THank

Sunanda

Hy,

I have CSt files about TSRR design. I Need a help for setting boundary condition.

Thanks

What sorta errors is CST returning?

Hi,

Thanks for reply. I have attached Rl curve and CSt main files. I do not know why i did not get my expected result. I think it will problem when set up 2 webguid ports and apply boundary conditions.

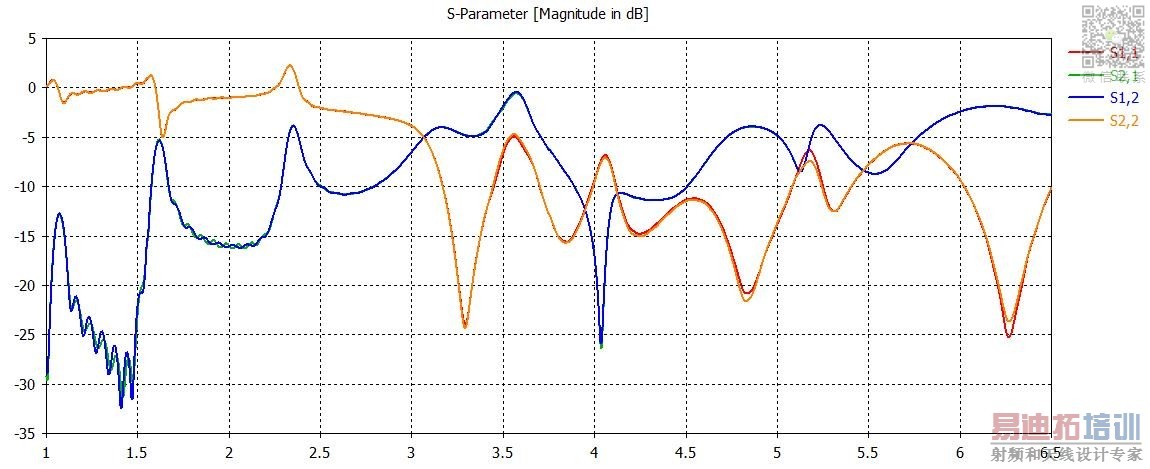

This is RL curve and check following the CST main files.

If you check that files and amend it. It would be a great help.

Thanks

2 w Port.zip

This is CST files for checking

What results did you expect?

Hi,

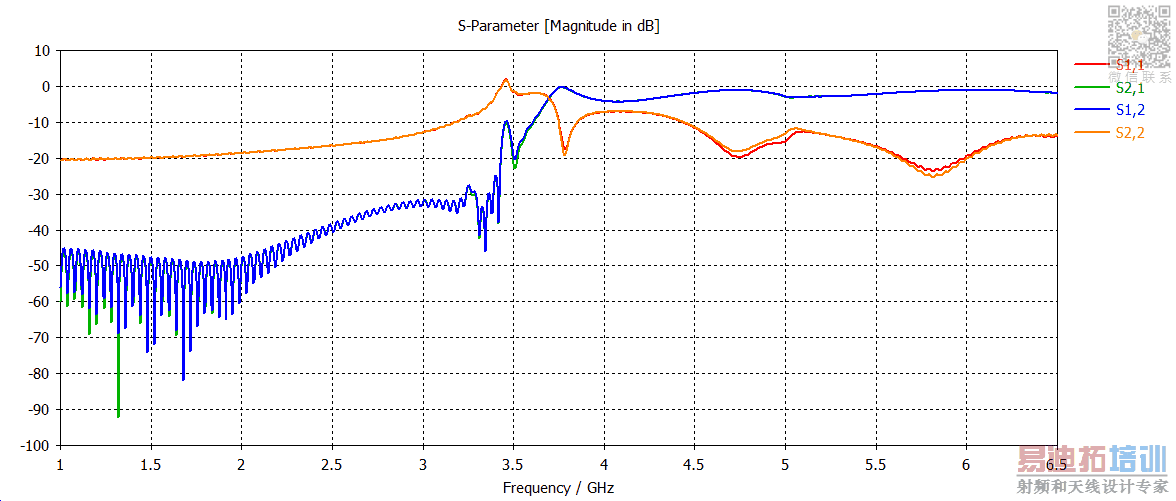

I try to improve my design without error free. I attached here again update files with simulated result.

If you check my files and help me to fix that error that will be good help for me.

2 w Port.zip

Thanks

Hi,

I'm still not quite sure what the error is, therefore it is quite impossible for me to fix anything.

What is the error? What results do you expect? I can see you've got two different s-parameter results, what are they due to?

What are you trying to achieve?
