CST Cable: just wanted to simulate 2 wires...

录入:edatop.com     点击:
Hello,

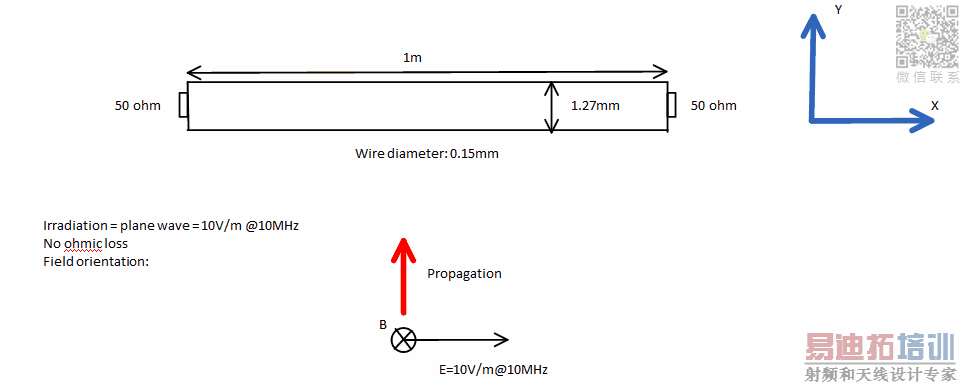

As I was getting strange results with CST, I decided to simplify my simulation. It is now a simple loop 1mx1.27mm that I irradiate with a plane wave 10V/m and 10MHz (figure attached). E field is longitudinal => no effect. H field is orthogonal: its action is easy to calculate by using e=-S.dB/dt => around mV accross the 50 ohm loads at the extremity of the wires. I guess there is no propagation effect @10MHz.
Result with CST= close to 1E-12.

1) Something is wrong: either the simulation, either my calculation. Any idea ? H field within the loop looks correct with the right orientation #0.026A/m. Any trick with CST Cable I have to take into account ? Is the result really equal to... 0 ?
2) What soft can I use to make such a simulation ?

Thanks !
