CST studio ferrite material defenition
录入：edatop.com 点击：
Hello, I'm modelling inductor ferrite toroid with winding of 11 turns in CST Microwave Studio
the problem is that ferrite core is not working ... impedance modeled with core is the same as without core (core deleted from model)
I've measured real inductor and the impedance resonance frequency is at 10MHz but the modeled impedance resonance is at 2GHz (with and without choke)

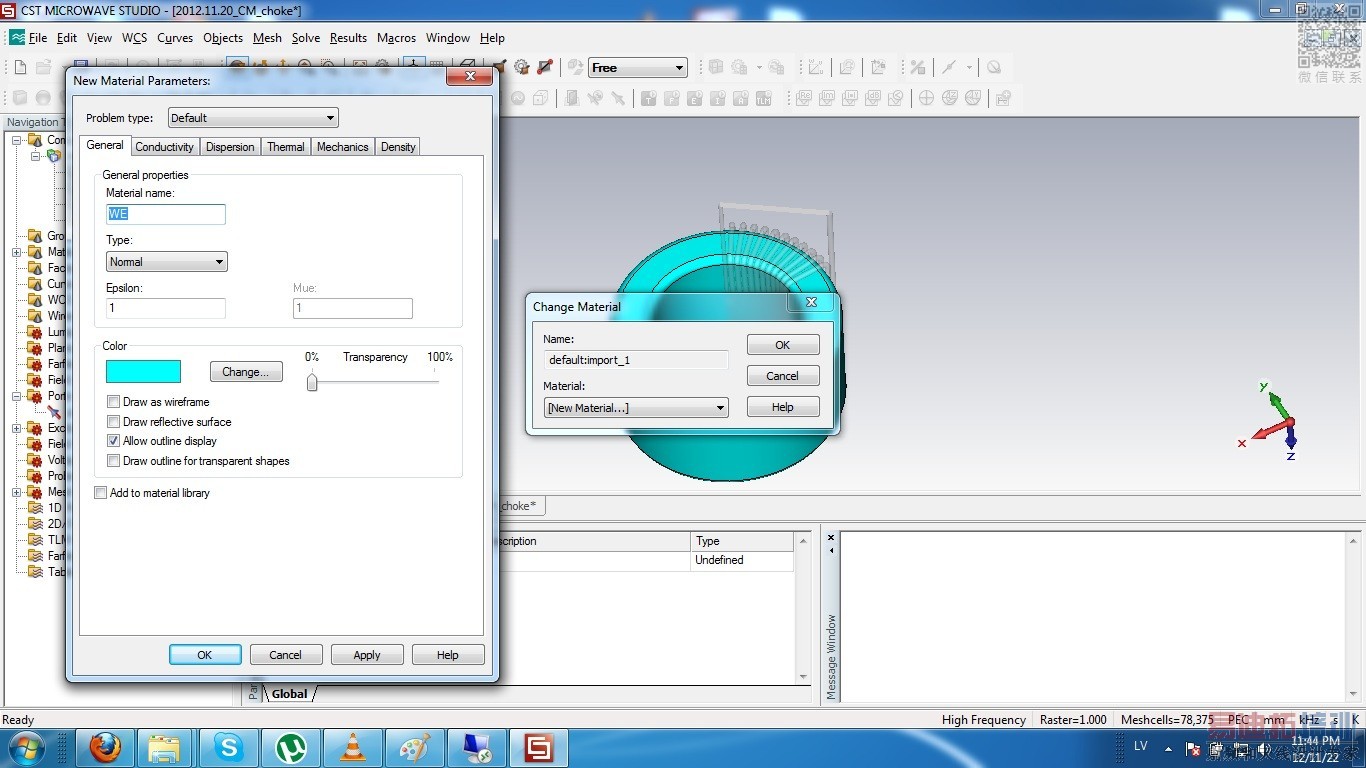

Here are the info on how I've defined the choke:
Where is the problem?
where to find any practical info to solve this?
the problem is that ferrite core is not working ... impedance modeled with core is the same as without core (core deleted from model)
I've measured real inductor and the impedance resonance frequency is at 10MHz but the modeled impedance resonance is at 2GHz (with and without choke)
Here are the info on how I've defined the choke:
Where is the problem?
where to find any practical info to solve this?
