Make a plot after parametric sweep in CST
录入：edatop.com 点击：
I am simulating the reflection phase (angle of S11) of a FSS under different incident angle. I set the variable 'theta' and made a par sweep for it.

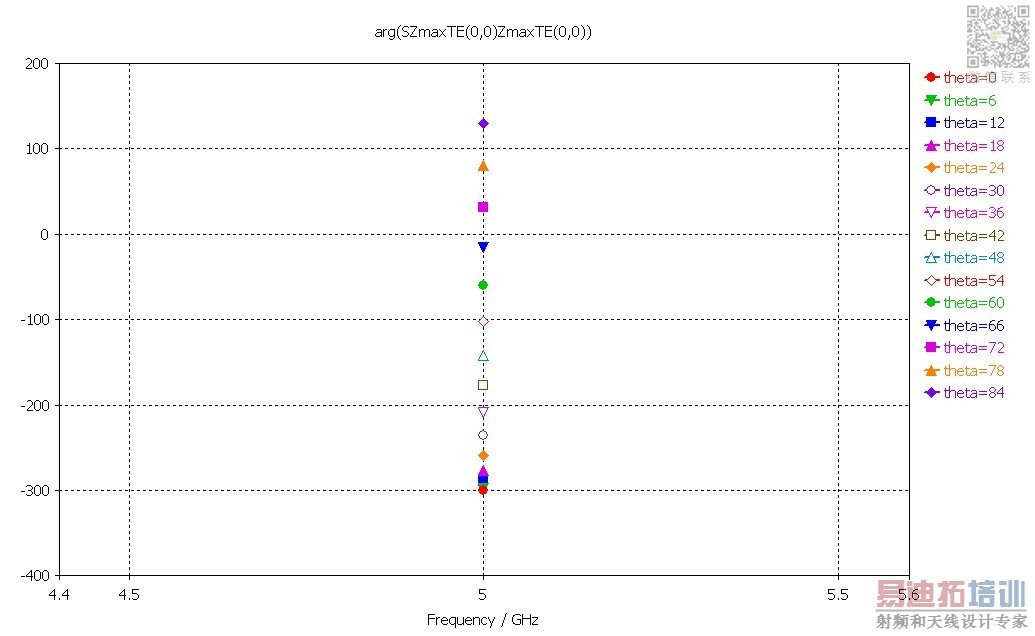

However, the graph CST provided me is something like this.
How can I make a plot of refection phase vs. incident angle (or other variable)? Thank you.
However, the graph CST provided me is something like this.
How can I make a plot of refection phase vs. incident angle (or other variable)? Thank you.
