ADS 2009 can import CST layout file

录入:edatop.com     点击:
Hello , i can't to import layout file CST at ADS 2009
thank

Yes it's correct, thanks for the information. Seriously, what is your question?

Hello,
Thanks for reply me, i designed structure antenna in CST and now i want import this antenna in ADS, its possible ?

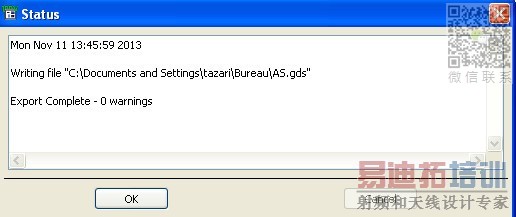

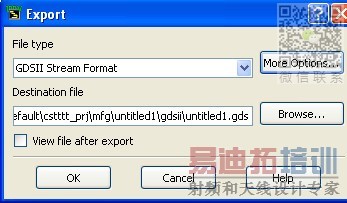

Yes you can export your structure as gds-file and import the gds-file in ADS.

But i have the slots in the front layer antenna and GND plan ?!

Just assign the layer correctly in ADS when you import your design.

it's not possible i can't see any think in ADS momentum

can you upload the file? i can check it for you!

it's not possible upload this file in forum don't have extention give ur e mail ?!
thank u

i will give you on evening because i'm at work now!

Thank u very mutch
