CST EMS time domain -- How to use? Why don't I get fields out of it?

Hi,

I've been modeling a Aluminum conductor with a pulsed current through it, due to the "pulsed" fact, I couldn't use the Stable current solver because it won't give the correct eddy current things.

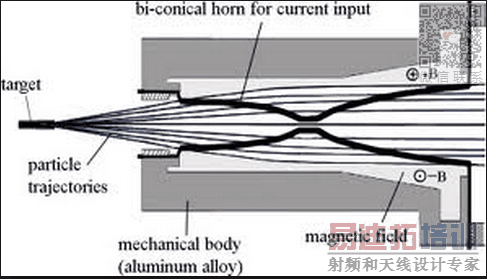

My model shown in the figure.

It is a horn shape thing. Current flows from the inner conductor to the outer conductor.

I used the time domain solver, but after solving, there is no 2D-3D results! why is that?

Did you try using some field monitors?
