urgent help --vivaldi antenna CST simulation setting
录入：edatop.com 点击：
Hello,everyone!
I am working on vivaldi antenna CST simulation.The S11 is very big and i think it is wrong.I did the simulation for the same model in HFSS before,and the result are quite well.So i guess the problem is CST setting,however i can't find where the problem is exactly. Can anybody help me to solve it? I appreciate...

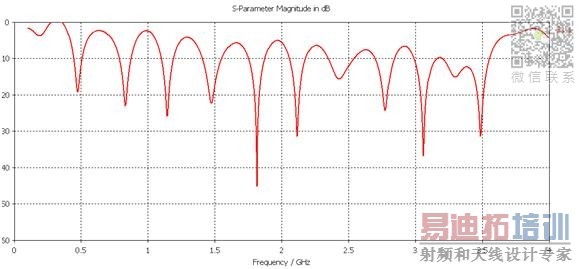

P.S. i post the S11 parameter figure and the .cst file. Please download it and help me.
I am working on vivaldi antenna CST simulation.The S11 is very big and i think it is wrong.I did the simulation for the same model in HFSS before,and the result are quite well.So i guess the problem is CST setting,however i can't find where the problem is exactly. Can anybody help me to solve it? I appreciate...
P.S. i post the S11 parameter figure and the .cst file. Please download it and help me.
