CST Studio simulation

hi,
im new to this forum...im workin on cst tool for my project...

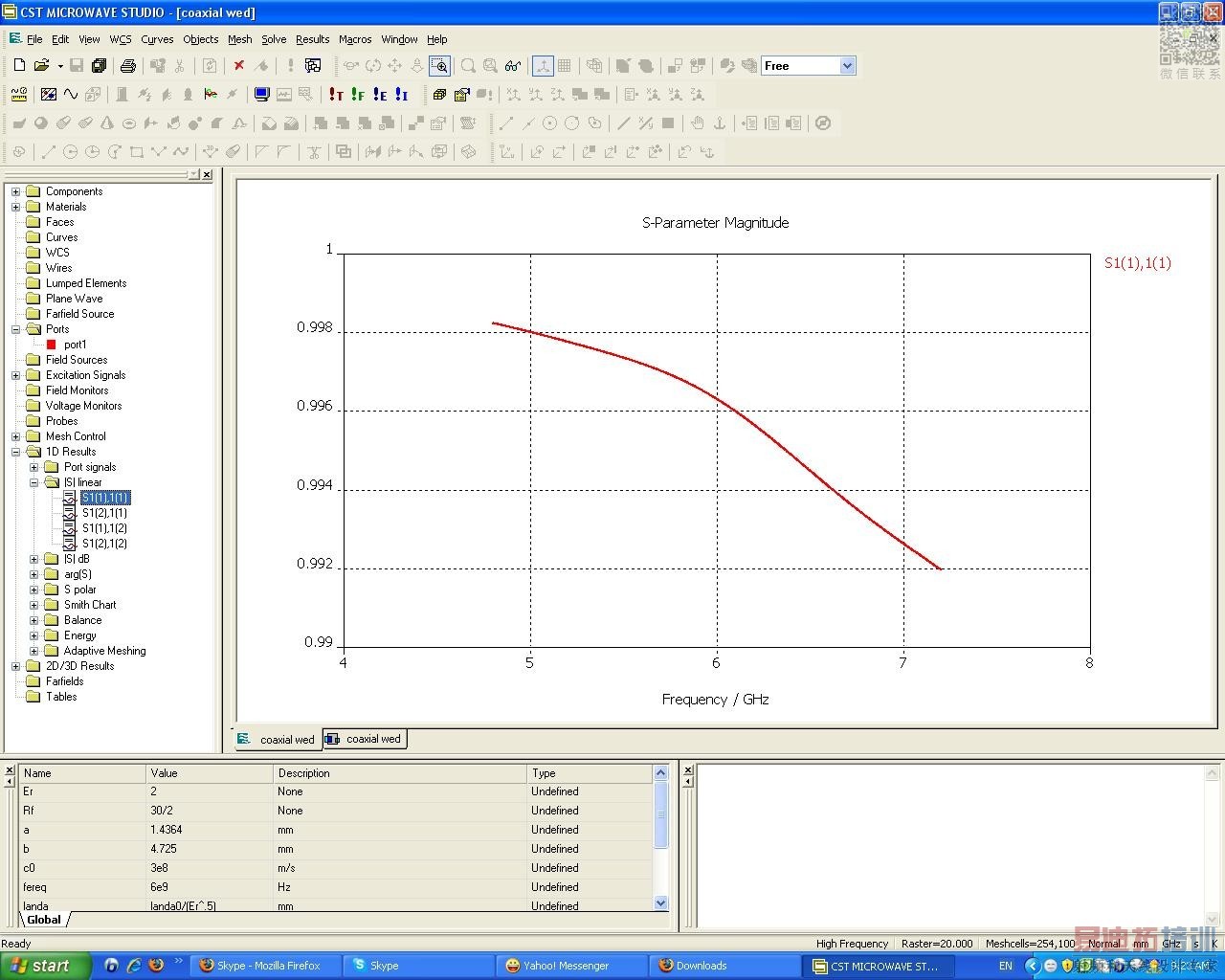

I want to know how to obtain results for S(2,1),S(2,2).,,so on.
Under 1D results only S(1,1) results are available..

if anyone knows..Pls help me in this regard...

search the help file or 3D EM Field Simulation - CST Computer Simulation Technology . There are some tutorial introduced during training but didnt actually use one. Hope it helps

This is a good tutorial which describes how to use CST for designing a patch antenna.

Hope this will be useful if you are new to CST.

http://www.ihf.rwth-aachen.de/filead...Tutorial_2.pdf

thank you for the quick reply:)..the tutorial was a bit helpful..

Hiprasan1988!
You propabley have only one port - for S2,1 or S3,1 results you need 2 ports or 3 respectively.

Good luck!

if you define two ports in CST you can use S11, S12, S21, S22. they are located in 1D results.

I agree with hamid
if u use multi ports in CST,automatically CST defined network of S parameters
