Problems with CST Microwave Studio step model
录入：edatop.com 点击：
I have a 3d model of the step format, in which there are only metal walls. How do I fill in a vacuum to calculate the fields using eigenmode?

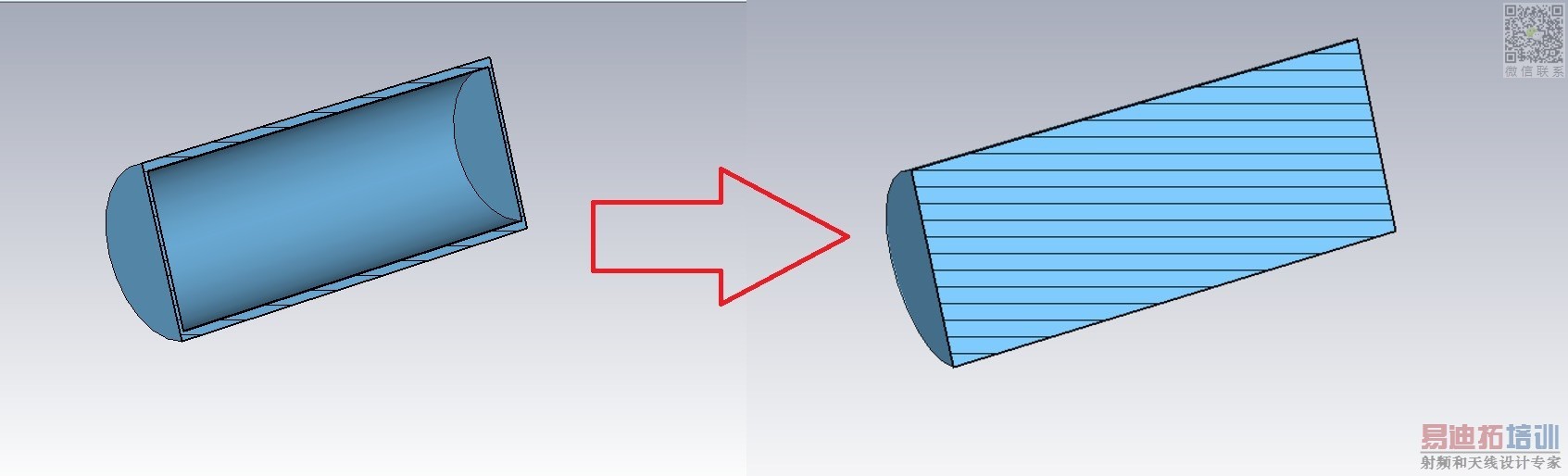

On the photo, you will see a very simple example. My model with complex geometric shapes and intersections.
On the photo, you will see a very simple example. My model with complex geometric shapes and intersections.
Sorry, I said not right.
How can I fill the metal inside the model part?
