Slot Charateristics in CST for slotted waveguide array
录入:edatop.com 点击:
Hello,
I am designing slotted waveguide Planar array in CST. For array design, i need design curves of slots characteristics.

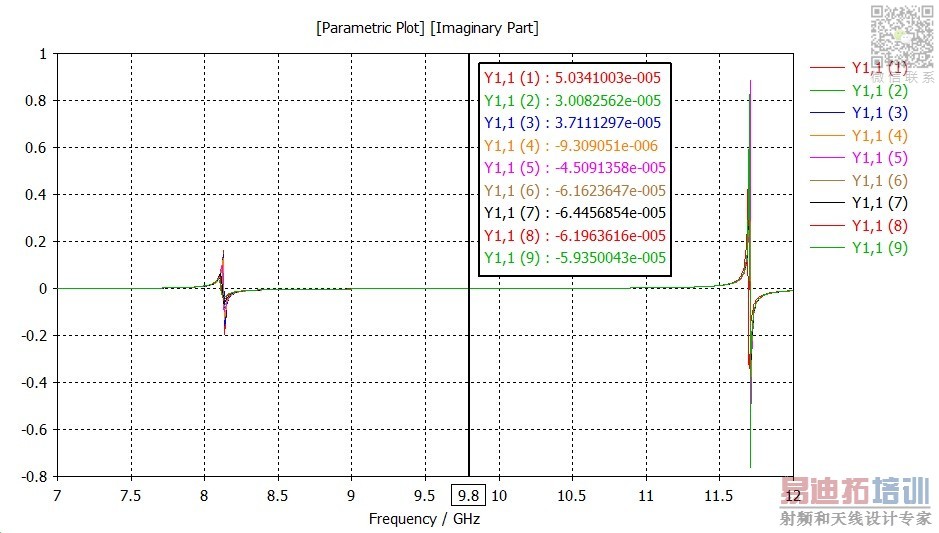

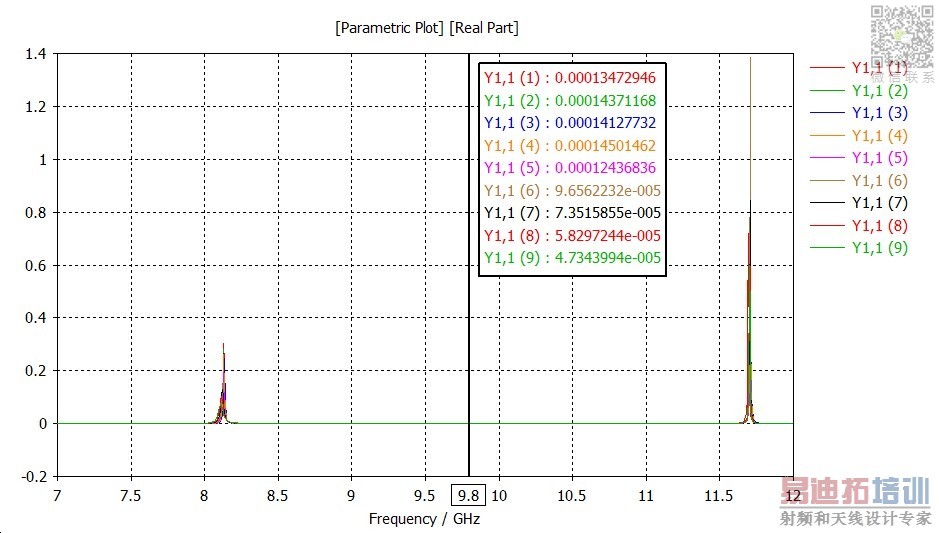

A longitudinal slot is in resonant condition when its admittance become purely real. I have simulated a slot with different lengths in CST and i am unable to understand the graphs i get. Can anybody explain me these two graphs that at what simulation pass admittance is purely real having no imaginary part.
I am designing slotted waveguide Planar array in CST. For array design, i need design curves of slots characteristics.
A longitudinal slot is in resonant condition when its admittance become purely real. I have simulated a slot with different lengths in CST and i am unable to understand the graphs i get. Can anybody explain me these two graphs that at what simulation pass admittance is purely real having no imaginary part.
