CST MWS VBA macro of e-field probe
录入:edatop.com 点击:
Hi, everybody, i need all your help.

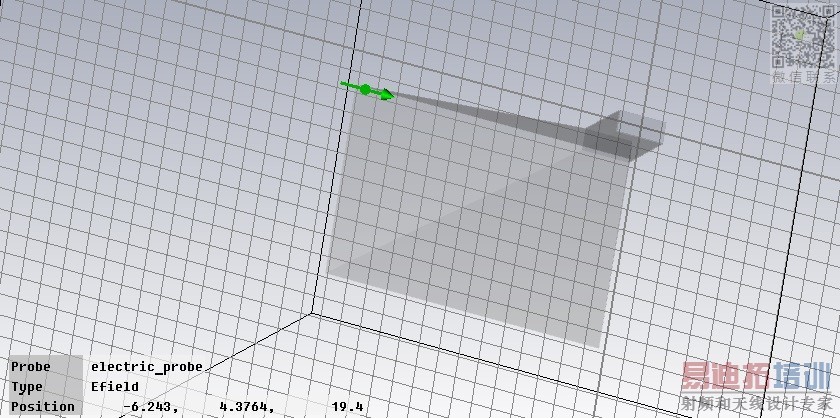

I want to measure near-field of antenna, e.g. horn, like on the picture.
And i need do it with a macro.

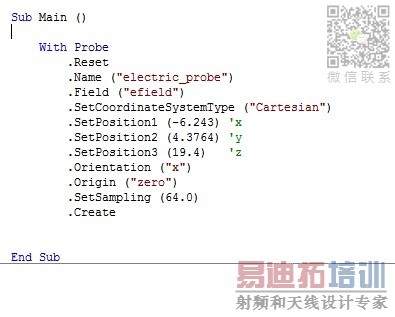

I used eField probe like here
To measure all the aperture of horn, i need to use construction For...Next.

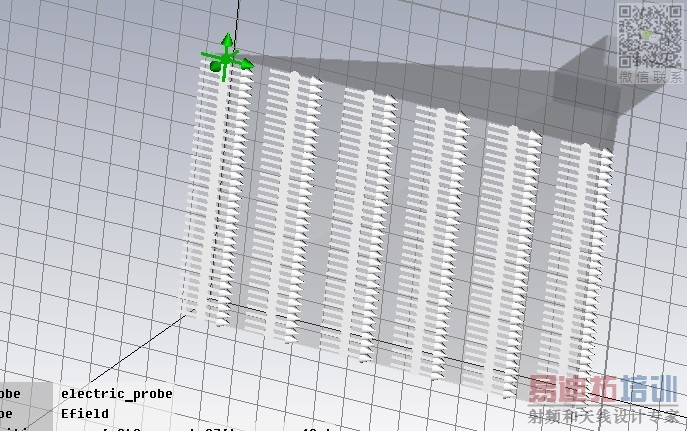

It must be like on the picture
But i can't, because don't know how. So, would you help me please to realise this one?
All replies are welcome.
I want to measure near-field of antenna, e.g. horn, like on the picture.
And i need do it with a macro.
I used eField probe like here
To measure all the aperture of horn, i need to use construction For...Next.
It must be like on the picture
But i can't, because don't know how. So, would you help me please to realise this one?
All replies are welcome.
