Planar horn antenna - CST2013 MWS Examples
录入：edatop.com 点击：
General Description
This example shows the calculation of farfields for a planar horn antenna. The antenna is fed by a rectangular waveguide.
Structure Generation
The structure is modelled only by using basic shapes (bricks) and boolean operations.
Solver Setup
Normal background material and open boundary conditions are defined for the correct simulation setup. The chosen units are mm and GHz. A rectangular waveguide port is defined as source. In the solver specials dialog the direct solver is chosen.
Post Processing

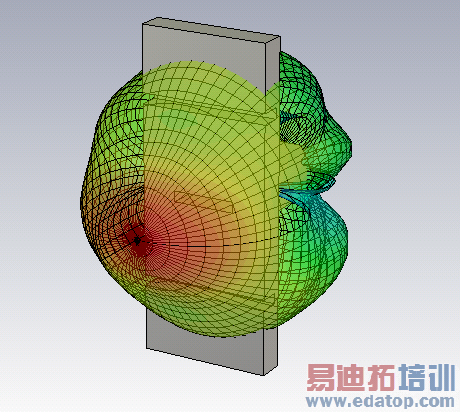

The resulting farfield is stored in the Farfields folder.
