如何将S参数导入matlab中可用的数据文件

导出成*.txt，就可以

Q: The export function of CST MWS support data format as Magnitude and Angle of the S-parameter. But I want to export S-parameter results to Real part and Img part format. Is that possible to setup this configuration in CST MWS?
......
A: ......

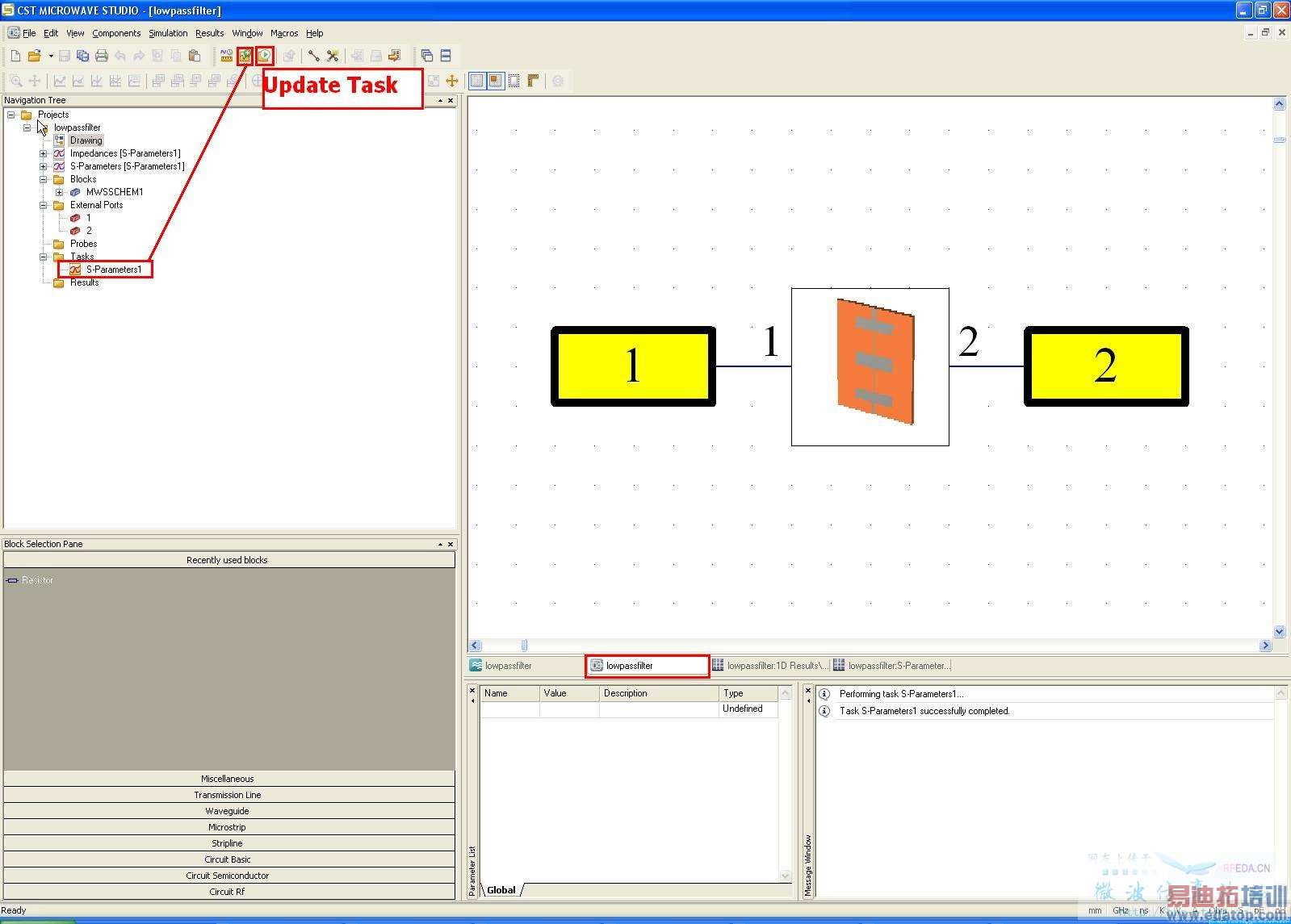

Currently in order to perform such an export (Real & Imaginary) you can use DESIGN STUDIO (see 1st screenshot). Attached a very simple structure without results.
Once the Task has been performed the S-Parameters are available. Select Export TOUCHSTONE from the File menu. Here the format option is available (see 2nd screenshot).
......



长知识了，呵呵



Cool ，学习了



学习了，呵呵
