CST MWS error: Memory resources exhausted

A new problem appears when I try to start simulation.There is an error in calculating solver matrix and the screen shows those words"Memory resources exhausted".
I've checked my system C ,and deleted some useless programmingsin order to release room ,but problem does'nt be resolved.
I hope that you can give me help.Thanks
Cheers



软件提示你内存耗尽，删硬盘上的文件不会有多大帮助的。
你电脑的总内存是多少？运行Solver之前的系统可用内存是多少？模型网格总数是多少？



I have to sent you the attached file in which you can find the information about my PC'memory as I could'nt upload the corresponding photo.
Thank for your advice

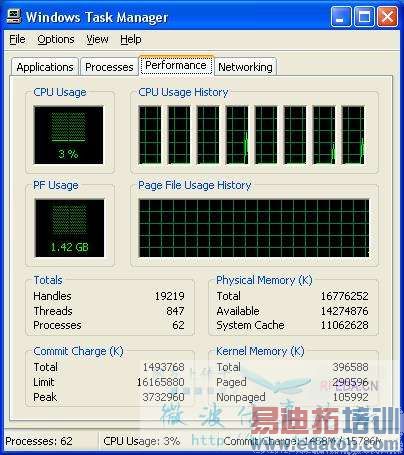

你还没告诉我你机器的总内存和运行仿真之前的系统可用内存是多少。把Task manager调出来，进Performance标签页，看看"Physical memory"里面的"Total"和"Available"分别是多少。


Global mesh properties是"8, 7, 10"的前提下已经是1千4百万网格数了，你的模型可够“大”的。



you will find the data in this enclosure



按照CST FAQ #137的文字，5-8百万网格的模型需要用到2 GB内存，你的模型有1400万网格，理论上需要6-8 GB的内存才够用。如果我没看错的话，你的机器总内存是2 GB，可用内存只有1 GB。
要么升级内存容量，要么把模型网格数减到2-4百万范围内。



Please forgive to me for asking aidiotic question:how to reduce mesh to the range 2-4 million??



这个问题一点儿都不白，而且还是一个技术含量很高的问题。
原则上既要减少总网格数又要确保模型网格化的时候误差不致过大。如果不看模型的话，不清楚你的模型的具体情况，很难有一个确切的建议。



euh....wait....would you mind if I offer to you my model by email,Mr hefang??



you mean your email address?no....
