CST MWS仿真印刷偶极子时遇到的警告
录入:edatop.com 点击:
警告如下:
Inhomogeneous material at open boundary detected. ( The structure must be indentical in the open boundary plane and the next two mesh steps. )
Location(s): xmin xmax

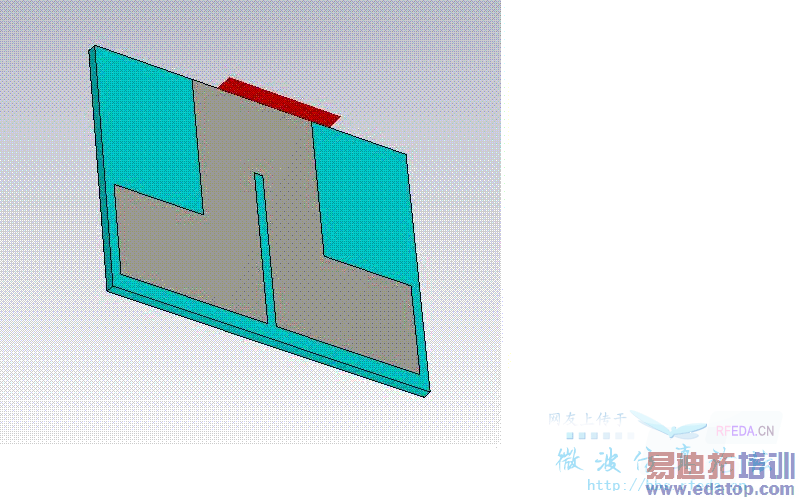

附图:
以前遇到这种问题时,增加波导端口的尺寸就可消除警告,但现在怎么改变尺寸,警告依然存在。我用的边界条件是open,也试过用open(add space),但结果不对。
请教大家,该如何解决?
Inhomogeneous material at open boundary detected. ( The structure must be indentical in the open boundary plane and the next two mesh steps. )
Location(s): xmin xmax

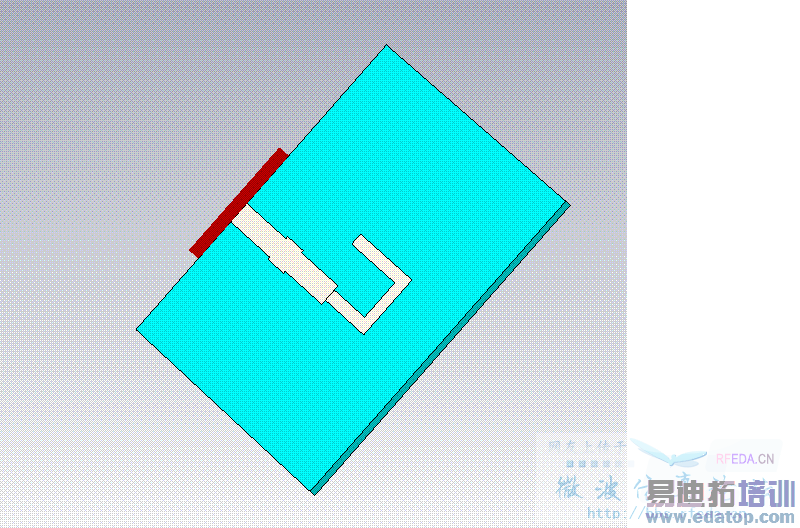

附图:
以前遇到这种问题时,增加波导端口的尺寸就可消除警告,但现在怎么改变尺寸,警告依然存在。我用的边界条件是open,也试过用open(add space),但结果不对。
请教大家,该如何解决?
