CST 2009请教

录入:edatop.com     点击:

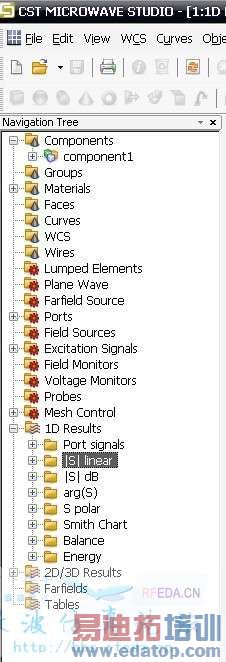

小弟CST新手,,,弱弱的请教下。CST右边1D Results 树下的/S/linear S polar Balance Energy 这几个分别表示的是什么》。 。



楼主可以查查help文件。
先帮你找了个Power Balance,抛砖引玉吧。
The S-parameter balance is calculated as the square root of the summed power leaving the structure through all ports. The balance should be one for structures that are loss-free (no material losses, no lumped element R) and closed (no open or lossy boundary condition). The power balance indicates frequencies where power is absorbed inside the structure or radiated through open boundaries, e.g., in case of a two port problem the balance regarding excitation at port one is defined as: the square root of |S11|^2+|S21|^2.
如有具体问题,欢迎讨论。



请细心阅读帮助文件《1D Result View》,什么都有了……

申明网友回复良莠不齐,仅供参考。如需专业解答,请学习易迪拓培训专家讲授的CST视频培训教程
